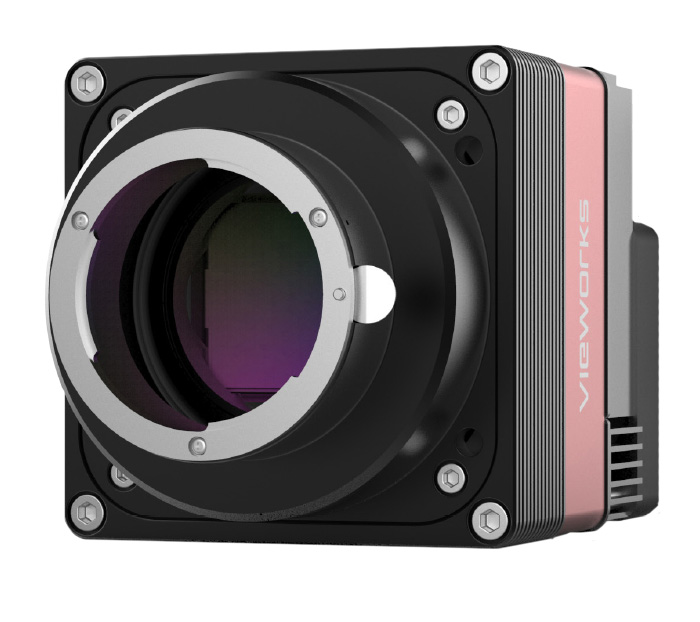

VP-31MX-M 35 H

The VP-31MX-35 H is a 31 megapixel CMOS camera available with the CoaXPress interface. This camera is based on the latest CMOS image sensor technology (IMX342) from Sony Semiconductor Solutions Corporation. The VP-31MX-35 H offers up to 35.4 frames per second at 6464 × 4852 resolution. This camera uses Thermoelectric Peltier (TEC) cooling technology developed for and used by many demanding medical market customers. The TEC maintains the operating temperature of the image sensor at up to 15±2℃ below ambient temperature. The VP-31MX camera provides a stable operating condition and the ability to expose for a long period of time to increase the camera’s sensitivity. Featuring high-speed and high-resolution with stable performance, this camera is ideal for demanding applications such as FPD, PCB and semiconductor inspections.

RESOLUTION (MP)31

RESOLUTION (HxV)6464 x 4852

FPS35.4

Sensor TypeIMX342

InterfaceCXP-6

ChromaMono

Thermoelectric Peltier Cooled – 15±2℃ below
31 Megapixel Resolution
CoaXPress Interface up to 35.4 fps at 25 Gbps using 4 CH
Flat Field Correction with Sequencer Control
PRNU Correction
Hot Pixel Correction and Defective Pixel Correction
Frame Averaging
GenICam Compatible – XML based Control

Flat Panel Display Inspection
Electronics Inspection
Semiconductor Inspection
Document and Film Scanning

Model	VP-31MX-M/C 35H
Resolution (H × V)	6464 × 4852
Sensor	SONY IMX342
Optical Format (Diagonal)	APS-C (27.9 mm)
Pixel Size	3.45 μm × 3.45 μm
Interface	CoaXPress (CXP-3 / CXP-6)
Max. Frame Rate	8 bit: 35.4 fps
	10 bit: 35.4 fps
	12 bit: 25.8 fps
Exposure Time	2.4 μs ~ 60 s
Partial Scan (Max. Speed)	1464.7 fps at 4 Lines
Binning	Sensor: ×1, ×2 (Horizontal and Vertical Dependent)
Pixel Data Format	Mono: Mono 8 / Mono 10 / Mono 12
Pixel Data Format	Color: RG Bayer 8 / RG Bayer 10 / RG Bayer 12
Electronic Shutter	Global Shutter
Trigger Synchronization	Free-Run, Hardware Trigger, Software Trigger or CXP
External Trigger	3.3 V ~ 24.0 V, 10 mA, Logical Level Input, Optically Isolated
Software Trigger	Asynchronous, Programmable via Camera API
Dynamic Range	72 dB
Gain Control	1× ~ 32×
Black Level Control	0 ~ 255 LSB at 12 bit
Cooling Method	Thermoelectric Peltier Cooling
Cooling Performance	15±2°C below ambient temperature – Standard cooling with a fan
Dimension / Weight	90.0 mm × 90.0 mm × 129.3 mm, 1261.4 g (with F-mount)
Temperature	Operating: 0°C ~ 40°C, Storage: -40°C ~ 70°C
Lens Mount	F-mount, Custom mount available upon request
Power	External: 11 ~ 24 V DC
Power	Dissipation: Typ. 30.0 W
Compliance	CE, FCC, KC (in preparation)
API SDK	Vieworks Imaging Solution 7.X

VP-31MX-M 35 H DATASHEET
