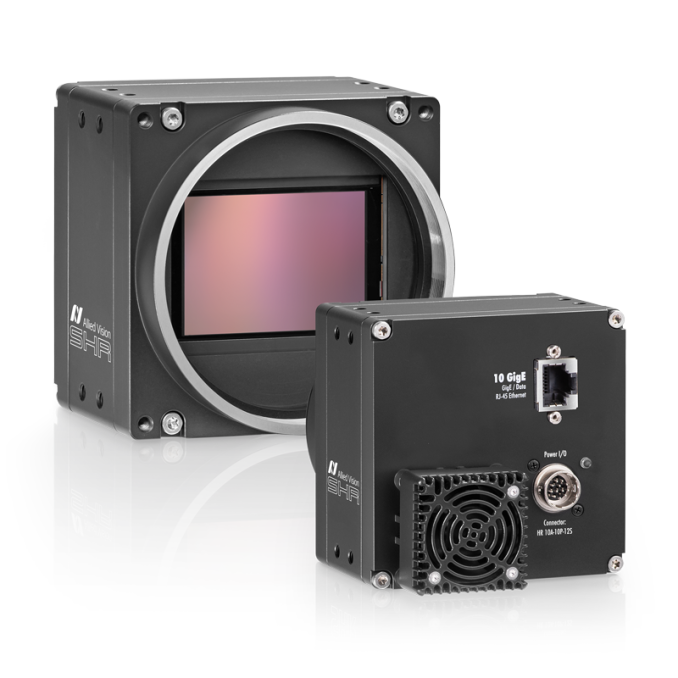

shr411MXGE

The AVT shr411MXGE is a large-format monochrome area scan camera built on the 151 megapixel Sony IMX411 CMOS sensor, designed for applications where extremely high resolution and image quality are essential. The 53.36 × 40.01 mm Type 4.2 sensor with 3.76 μm pixels resolves 14,192 × 10,640 pixels in a single capture at up to 6.2 fps. A standard RJ-45 10GigE interface under GigE Vision 2.0 transmits image data over existing network infrastructure, with Power over Ethernet available in the -P option. On-board shading correction, flat field correction, LUT and defect pixel correction deliver 78 dB dynamic range and 46.9 dB SNR for electronics inspection, flat panel inspection, metrology and digitization.

RESOLUTION (MP)151

RESOLUTION (HxV)14192 x 10640

FPS6.2

Sensor TypeIMX411

Interface10 GigE

Chromamono

151 MP Sony IMX411 Type 4.2 CMOS sensor
10GigE (RJ-45) interface, GigE Vision 2.0
Power over Ethernet, PoE+ (option -P)
78 dB dynamic range, 46.9 dB SNR
Mono 8/12/16 bit output
Borofloat B270i AR-coated protection glass
LUT, mirror image, DPC, shading correction, FFC
Sequencer, user sets and 4 × PWM control

Electronics Inspection
Flat Panel Display Inspection
Metrology
Document / Film Digitization
Aerial and Large Area Imaging

Specification	Details
Model	shr411MXGE
Product Code	F004092
Resolution (MP)	151
Resolution (H x V)	14192 x 10640
Sensor	Sony IMX411, CMOS, Area Scan, Monochrome
Sensor Size (Diagonal)	53.36 mm x 40.01 mm (66.69 mm), Type 4.2
Pixel Size	3.76 μm x 3.76 μm
Interface	10GigE (RJ-45), GigE Vision 2.0
Max Frame Rate	6.2 fps at full resolution
Exposure Time	Min: 60 μs
Exposure Time	Max: 60 s
Gain Modes / Max	Manual, Auto / 36 dB
Pixel Data Format	Mono 8 / Mono 12 / Mono 16 bit
Electronic Shutter	Rolling Shutter
Spectral Range	400 nm – 1000 nm, Borofloat B270i AR coating
Dynamic Range / SNR	78 dB / 46.9 dB
Trigger Synchronization	Internal / Software / External
Image Control	LUT, mirror image, DPC, shading correction, FFC
Digital I/O	2 x 24 V inputs, 4 x open-drain outputs, 1 x opto-isolated input, RS232 in / out
Dimension	83 mm x 80 mm x 80 mm
Weight	580 g
Protection Rating	IP30
Temperature	Operating (housing): -10°C to +65°C
Lens Mount	M72 x 0.75 mm
Power	External 10 – 25 VDC; PoE+ (opto-in -P), typically 19.0 W

shr411MXGE Datasheet
