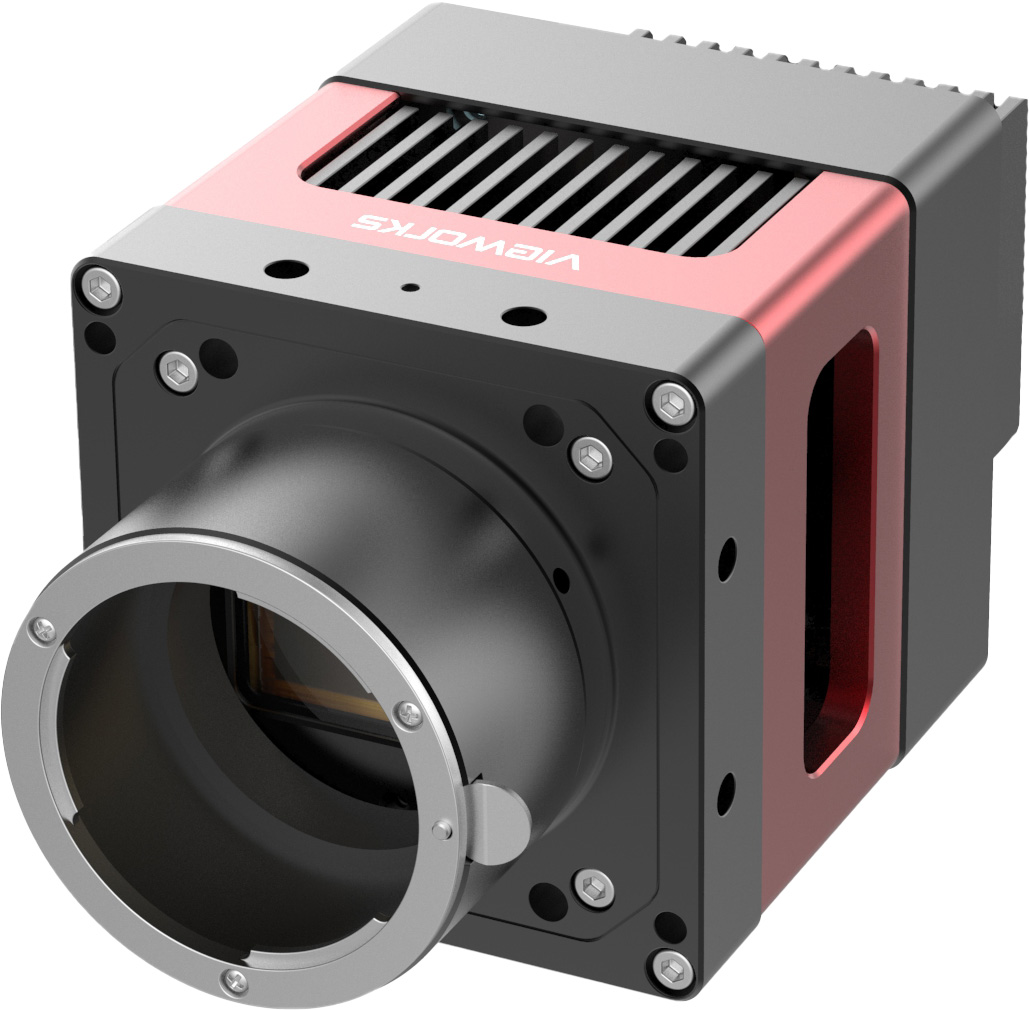

VP-61MC-M 13 H

The VP-61MC 13 H is a new 61 megapixel CMOS camera available with the Camera Link interface. This camera is based on the latest CMOS image sensor technology (IMX455) from Sony Semiconductor Solutions Corporation. The VP-61MC 13 H offers up to 13 frames per seconds at 9568 × 6380 resolution. This camera uses thermoelectric Peltier (TEC) cooling technology developed for and used by many demanding medical market customers. The TEC maintains the operating temperature of the image sensor at up to 15 degrees below ambient temperature. The VP-61MC camera provides a stable operating condition and the ability to expose for a long period of time to increase the camera’s sensitivity. Featuring high-speed and high-resolution with stable performance, this camera is ideal for demanding applications such as FPD, PCB and semiconductor inspections.

RESOLUTION (MP)61

RESOLUTION (HxV)9568 x 6380

FPS13.68

Sensor TypeIMX455

InterfaceCamera Link

ChromaMono

Thermoelectric Peltier Cooled – 15℃ below
61 Megapixel Resolution
Camera Link Full Interface
Electronic Rolling Shutter
Flat Field Correction with Sequencer Control
DSNU and PRNU Correction
Hot Pixel Correction

Flat Panel Display Inspection
Electronics Inspection
Semiconductor Inspection
Document and Film Scanning

Resolution (MP)		61
Resolution (H x V)		9568 x 6380
Sensor		Sony IMX455
Sensor Size (Diagonal)		35.98 mm x 23.99 mm (43.3 mm)
Optical Format		2.7”
Sensor Type		High Speed CMOS Image Sensor
Pixel Size		3.76 µm x 3.76 µm
Interface		Camera Link Base / Medium / Full / 10 Tap
Max Frame Rate	2 Tap	2.75 fps
	4 Tap	5.50 fps
	8 Tap	10.97 fps
	10 Tap	13.68 fps
Exposure Time		22.72 µs – 60s (@10 Tap)
Partial Scan (Max Speed)		1569.85 fps @ 4 Lines
Binning	Sensor	X1, X2, X3 (Horizontal and Vertical Dependent)
	Logic	X1, X2, X4 (Horizontal and Vertical Independent)
Pixel Data Format	Mono	Mono 8 / Mono 10 / Mono 12
	Color	RG Bayer 8 / RG Bayer 10 / RG Bayer 12
Data Output Pixel Clock Speed		65 MHz / 85 MHz
Electronic Shutter		Rolling
Trigger Synchronization	Overlapped	Free-Run
	Non-overlapped	Hardware Trigger, Software Trigger, CC1 or User Output0
External Trigger		3.3 V – 24.0 V, 10 mA, Logical Level Input, Optically Isolated
Dynamic Range		78 dB
Gain Control		Analog: 1X – 32X / Digital: 1X – 32X
Black Level Control		0 – 255 LSB at 12 bit
Cooling Method		Thermoelectric Peltier Cooling
Cooling Performance		15°C below ambient temperature / Standard cooling with fan
Dimension		80.0 mm x 80.0 mm x 154.6 mm
Weight		1070 g
Temperature		Operating: 0° C – 40° C	Storage: -40° C – 70° C
Lens Mount		F Mount
Power		11 – 24 V DC Typ 28 W

VP-61MC-M 13 H DATASHEET
