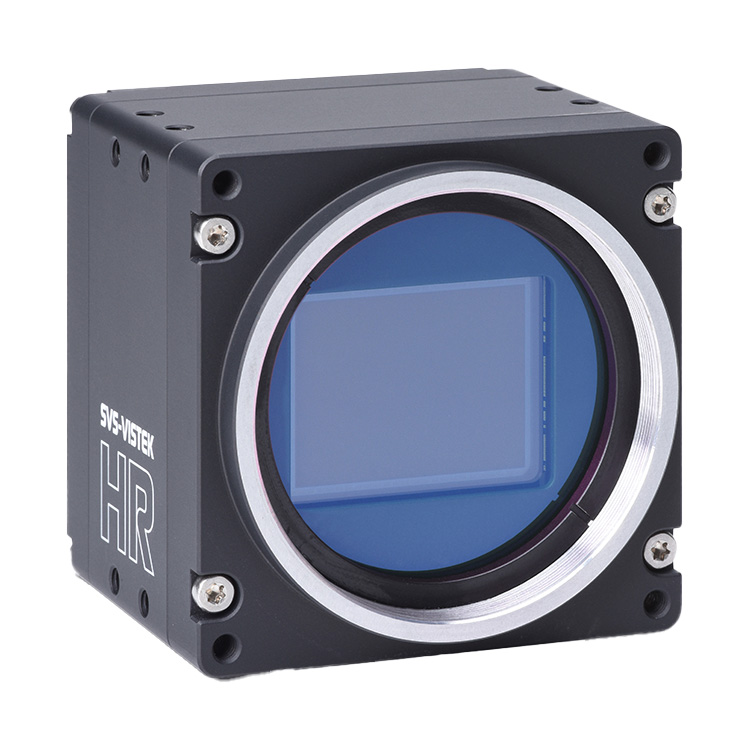

hr51CXGE

The HR 10 GigE series with its high-end high-resolution CCD and CMOS sensors permits making full use of the sensor bandwidth. 10 GigE delivers up to 1.1 GB/s of image data with distances up to 100m. The clean design according to well established standards like GigE Vision, 10 GigE Vision and GenICam ensure rapid integration into the final application. The camera features a rich choice of industrial hardware and software features. Burst mode enables even higher trigger frequencies.

RESOLUTION (MP)51

RESOLUTION (HxV)8424 x 6032

FPS23.7

Sensor TypeGMAX4651

Interface10 GigE

Chromacolor

Defect pixel correction, lens shading correction
ROI, LUT, binning, gamma, offset, autoexposure
GenICam interface with GenTL driver
Integrated multi channel LED strobe controller
POE (Power Over Ethernet) single cable option
Industrial TTL-24V I/O interface with SafeTrigger, programmable logic functions, sequencer and timer, RS232
M58 lens interface (F-Mount optional)

‍

Optical Metrology
Surface Inspection
Quality Control
Large Area Scanning

Resolution (MP)	51
Resolution (H × V)	8424 × 6032
Sensor	Gpixel GMAX 4651
Sensor Size (Diagonal)	38.75 mm × 27.75 mm (47.66 mm)
Optical Format	35 mm
Sensor Type	High Speed CMOS Image Sensor
Pixel Size	4.6 µm × 4.6 µm
Interface	10 GigE (RJ-45)
Max Frame Rate	23.7 fps
Exposure Time	Min: 80 µs
Exposure Time	Max: 1 s
Gain Modes	Manual, Auto
Internal Memory	512 MB SDRAM
Pixel Data Format	Bayer 8 / Bayer 12
Electronic Shutter	Global
Trigger Modes	Internal / Software / External
Dimension	70.0 mm × 70.0 mm × 76.8 mm
Weight	380 g
Temperature	Operating: -10°C ~ 45°C
Lens Mount	M58 Mount
Power	10 – 25 V DC
Power Consumption	16.0 W
