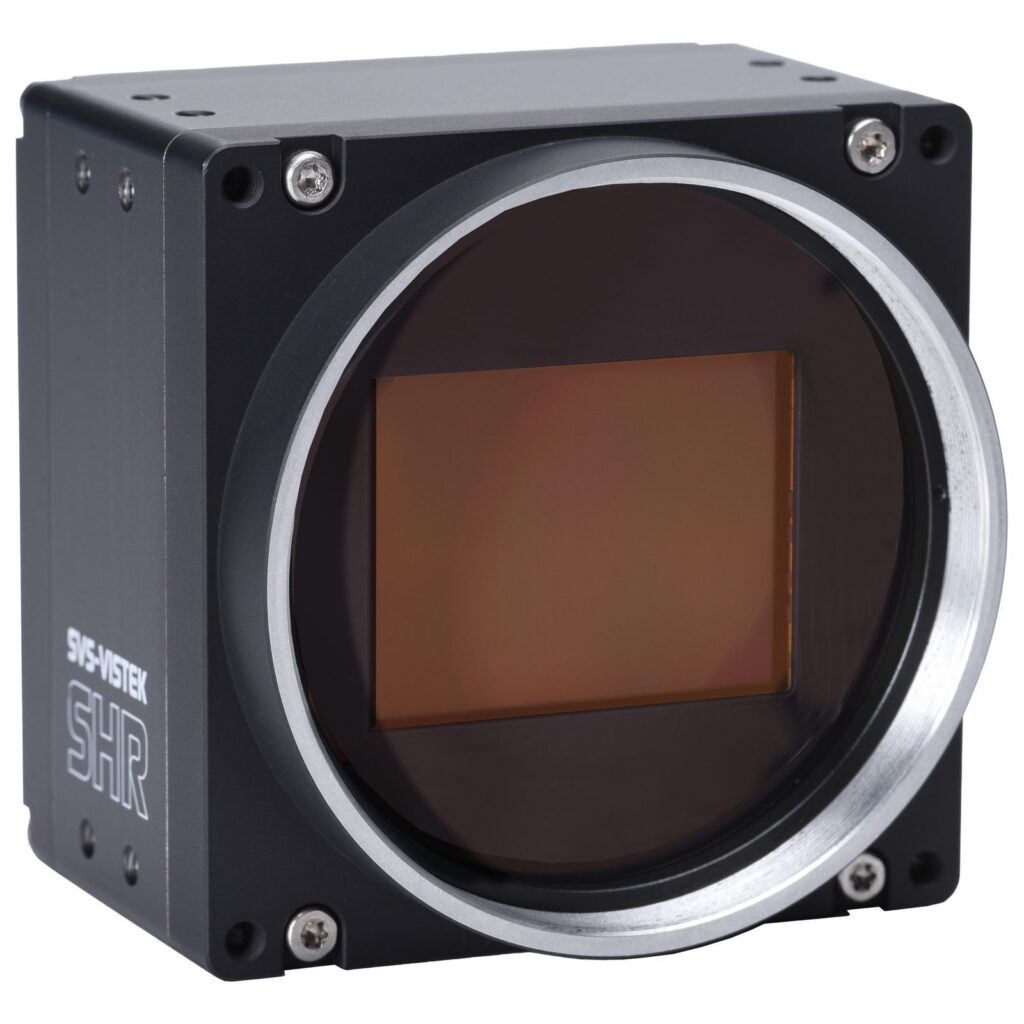

shr461CXGE

The high resolution SHR series offers outstanding image quality. This is made possible by the excellent physical characteristics of large pixels in large format sensors. The thermally highly optimized housing guarantees highest optical precision. The large M72 lens mount can be adapted to any lens. The economical and high-performance 10 GigE interface offers high data transfer speeds of up to 1.1 GB/s for these large images. A special frame grabber is not required.

RESOLUTION (MP)101.8

RESOLUTION (HxV)11648 x 8742

FPS8.7

Sensor TypeIMX461

Interface10 GigE

Chromacolor

User defined shading correction
Automatic and user defined pixel correction
Extremely low noise
Excellent dynamic range
high performance 10GigE interface
Integrated 4-channel LED strobe controller
Industrial TTL-24V I/O Interface with Safe Trigger, programmable logic functions, sequencers and timers, RS232

Flat Panel Display Inspection
Electronics Inspection
Semiconductor Inspection
Document / Film Scanning

Specification	Details
Resolution (MP)	101.8
Resolution (H x V)	11648 x 8742
Sensor	Sony IMX 461
Sensor Size (Diagonal)	43.8 mm x 32.87 mm (54.76 mm)
Optical Format	3.4″
Sensor Type	High Speed CMOS Image Sensor
Pixel Size	3.76 μm x 3.76 μm
Interface	10 GigE (RJ-45)
Max Frame Rate	8.7 fps
Exposure Time	Min: 60 μs
Exposure Time	Max: 1 s
Gain Modes / Max	Manual, Auto / 36 dB
Internal Memory	512 MB SDRAM
Pixel Data Format	Mono 8 / Mono 12 / Mono 16
Electronic Shutter	Rolling
Trigger Modes	Internal / Software / External
Dimension	80.0 mm x 80.0 mm x 83.0 mm
Weight	580 g
Temperature	Operating: -10°C – 45°C, Storage: -40°C – 70°C
Lens Mount	M72 Mount
Power	10 – 25V DC 17.0 W
