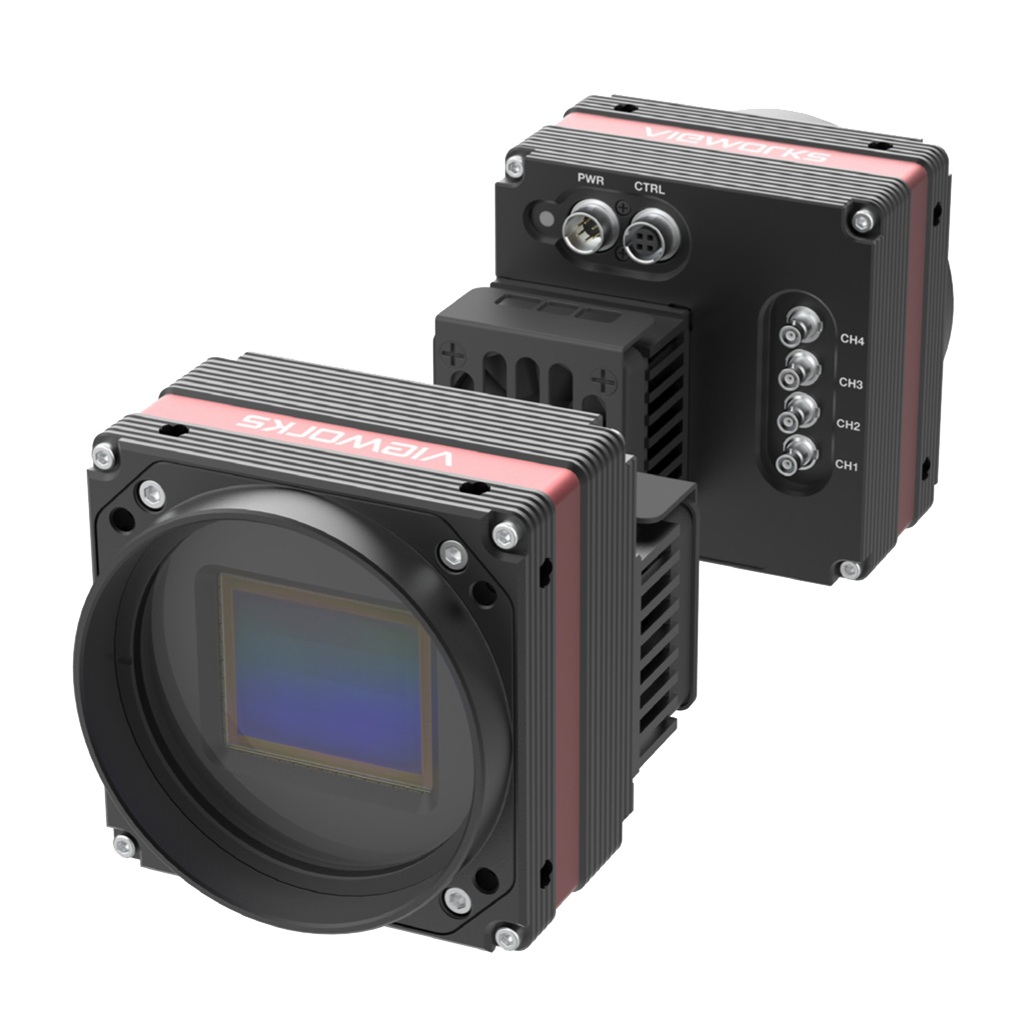

VC-103MX2-C 24 I

Resolution (MP)

103

Resolution (H x V)

11264 x 9200

Sensor

Gpixel GMAX 32103

Sensor Size (Diagonal)

36.1 mm x 29.4 mm (46.6 mm)

Optical Format

2.9”

Sensor Type

High Speed CMOS Image Sensor

Pixel Size

3.2 µm x 3.2 µm

Interface

CXP-12 x 4

Max Frame Rate

(8 bit)

CXP-6 x 4

22.8 fps

CXP-10 x 4

24.7 fps

CXP-12 x 4

24.7 fps

Exposure Time (1 µs step)

1 µs – 60 s

Partial Scan (Max Speed)

850.2 fps at 4 Lines

Pixel Data Format

Mono 8 / 10 / 12 bit

Color GB Bayer 8 / 10 / 12 bit

Electronic Shutter

Global

Binning

X1, x2, x4 (Mono), Horizontal and Vertical Dependent

Gain Control

Analog

1.4x – 5.2x

Digital

1.0x – 32.0x

Black Level Control

0 – 255 LSB at 12 bit

Trigger Synchronization

Free Run, Hardware Trigger, Software Trigger or CXP

External Trigger

3.3 V – 24.0 V, 10 mA, Logical Level Input, Optically Isolated

Software Trigger

Asynchronous, Programmable via Camera API

Dynamic Range

66 dB at 12 bit

Dimension

80 mm x 80 mm x 85 mm

Weight

0.55 kg

Temperature

Operating: 0° C – 40° C

Storage: -40° C – 70° C

Lens Mount

M72 Mount

Power

External

11 – 24 V DC, Typ 20 W

PoCXP

24 V DC, Minimum of two PoCXP cables required

Compliance

CE, FCC, KC
