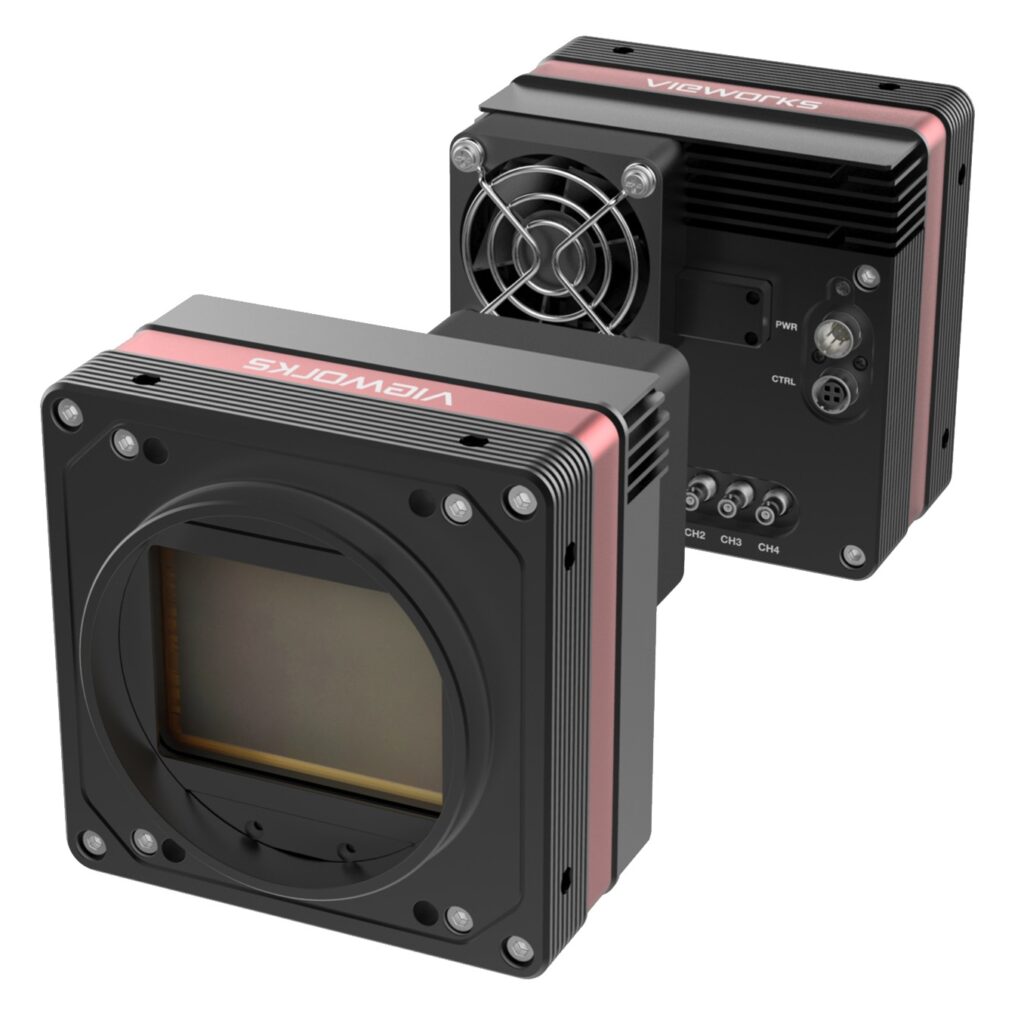

VC-127MX2-M 21 H

Resolution (MP)

127

Resolution (H x V)

13376 x 9528

Sensor

Sony IMX 661

Sensor Size (Diagonal)

46.15 mm x 32.87 mm (56.73 mm)

Optical Format

3.6”

Sensor Type

High Speed CMOS Image Sensor

Pixel Size

3.45 µm x 3.45 µm

Interface

CoaXPress 2.0 (CXP-6 / 10 / 12)

Max Frame Rate

1 CH

8.8 fps

2 CH

17.9 fps

4 CH

21.9 fps

Exposure Time (1 µs step)

1 µs – 60 s

Pixel Data Format

Mono 8 / 10 / 12 / 14 bit

Color RG Bayer 8 / 10 / 12 / 14 bit

Electronic Shutter

Global

Binning

Sensor (12, 14 bit)

Horizontal and Vertical Dependent x1, x2

Logic

Horizontal and Vertical Dependent x1, x2, and x4 (mono only)

Gain Control

Analog

1.4x – 5.2x

Digital

1.0x – 32.0x

Black Level Control

0 – 255 LSB at 12 bit

Exposure Mode

Timed, Trigger Width

Trigger Synchronization

Free Run, Hardware Trigger, User Output0, CXP, Timer

External Trigger

3.3 V – 24.0 V, 10 mA, Logical Level Input, Optically Isolated

Software Trigger

Asynchronous, Programmable via Camera API

Dynamic Range

72.7 dB at 14 bit

Dimension

100 mm x 100 mm x 81 mm

Weight

1.01 kg

Temperature

Operating: 0° C – 40° C

Storage: -40° C – 70° C

Lens Mount

M72 Mount

Power

External

11 – 24 V DC, Typ 25.5 W

PoCXP

24 V DC, Minimum of two PoCXP cables required

Compliance

CE, FCC, KC
