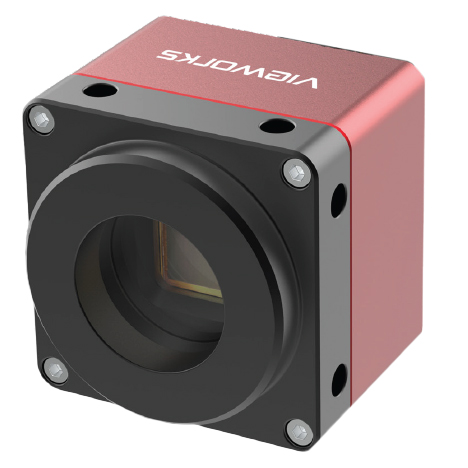

VC-12MX-M 65 H

This camera features 12 megapixel resolution with frame rates of up to 65 fps. These combinations of resolution, frame rate, and global shutter set a new standard for Industrial, Scientific, and Surveillance digital imaging applications. Customers in the industrial market can take advantage of common coax cabling to transmit images at rates and distance above and beyond previous standards. With these cameras, image data can be transmitted at up to 6.25 Gbps using a single coaxial cable and up to 12.5 Gbps using two cables. These high speed and high resolution models are ideal for a wide range of demanding applications including PCB and semiconductor inspections. This camera is offered in a straight type and a right angle type, with the same specifications.

RESOLUTION (MP)12

RESOLUTION (HxV)4096 × 3000

FPS64.6

Sensor TypeIMX 253

InterfaceCXP-6

ChromaMono

12 MP Resolution
High-Speed Progressive Scan CMOS Image Sensor
Global Shutter CMOS Technology
CoaXPress Interface up to 64.6 fps at 12.5 Gbps using 2 CH
Low Noise with Optimized Heat Treatment
Flat Field Correction

PCB Inspection
Semiconductor Inspection
3D Inspection
High End Surveillance

Resolution (MP)		12
Resolution (H x V)		4096 x 3000
Sensor		Sony IMX253
Sensor Size (Diagonal)		14.13 mm x 10.35 mm (17.6 mm)
Optical Format		1.1”
Sensor Type		High Speed CMOS Image Sensor
Pixel Size		3.45 µm x 3.45 µm
Interface		XP-6 × 2 (Micro BNC)
Max Frame Rate		64.6 fps
Exposure Time (1 µs step)		1.51 µs – 60 s
Pixel Data Format		8 bit
Electronic Shutter		Global
Gain Control		Analog: x1 – x8, Digital: x1 – x32
Black Level Control		0 – 15 LSB at 8 bit
Trigger Synchronization		Free Run, Timed, Trigger Width
Dynamic Range		65 dB
Dimension		50 mm x 50 mm x 44 mm
Weight	Straight	184 g
	Right Angle	198 g
Temperature		Operating: 0° C – 40° C	Storage: -40° C – 70° C
Lens Mount		C Mount
Power		11 – 24 V DC Typ 6.5 W
Compliance		CE, FCC, KC, UL

VC-12MX-M 65 H - DATASHEET
