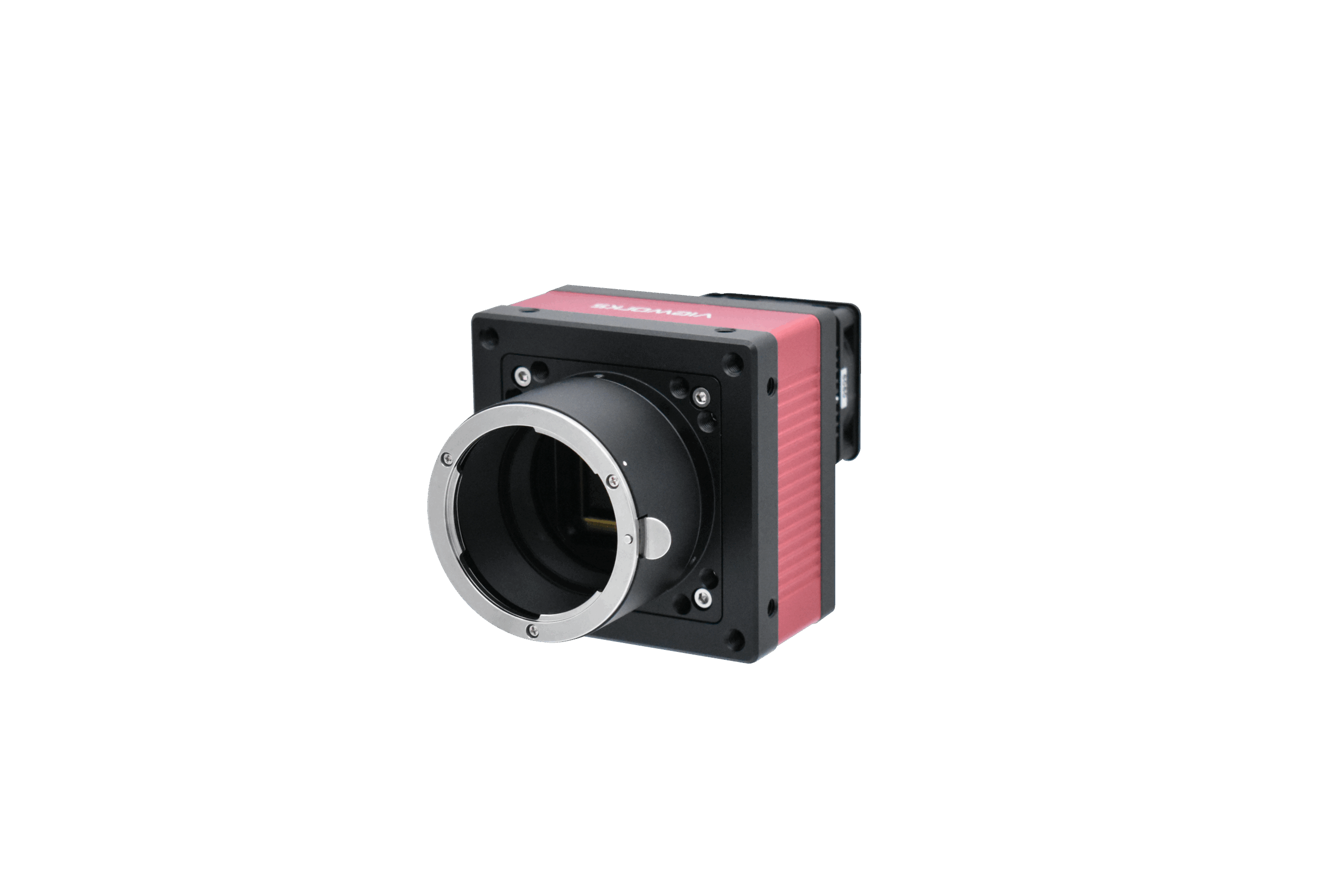

VC-12MX2-C 330 F

Resolution (MP)

12

Resolution (H x V)

4096 x 3072

Sensor

AMS CMV12000

Sensor Size (Diagonal)

22.53 mm x 16.90 mm (28.16 mm)

Optical Format

APS-Like

Sensor Type

High Speed CMOS Image Sensor

Pixel Size

5.5 µm x 5.5 µm

Interface

CoaXPress 2.0

Max Frame Rate

CXP-12 x 1

94 fps

CXP-12 x 2

188 fps

CXP-12 x 4

335 fps

Exposure Time (1 µs step)

1 µs – 60 s

Partial Scan (Max Speed)

28571.0 fps at 4 Lines

Pixel Data Format

Mono 8

Color GB Bayer 8

Electronic Shutter

Global

Digital Gain

1x – 32x

Black Level Control

0 – 15.75 LSB (Increment: 0.25)

Trigger Synchronization

Free Run, Hardware Trigger, Software Trigger or CXP

External Trigger

3.3 V – 24.0 V, 10 mA, Logical Level Input, Optically Isolated

Software Trigger

Asynchronous, Programmable via Camera API

Dynamic Range

54 dB

Dimension

80 mm x 80 mm x 102 mm

Weight

680 g

Temperature

Operating: 0° C – 40° C

Storage: -40° C – 70° C

Lens Mount

F Mount

Power

External

10 – 24 V DC, Typ 21.5 W

PoCXP

24 V DC, Minimum of two PoCXP cables required

Compliance

CE, FCC, KC
