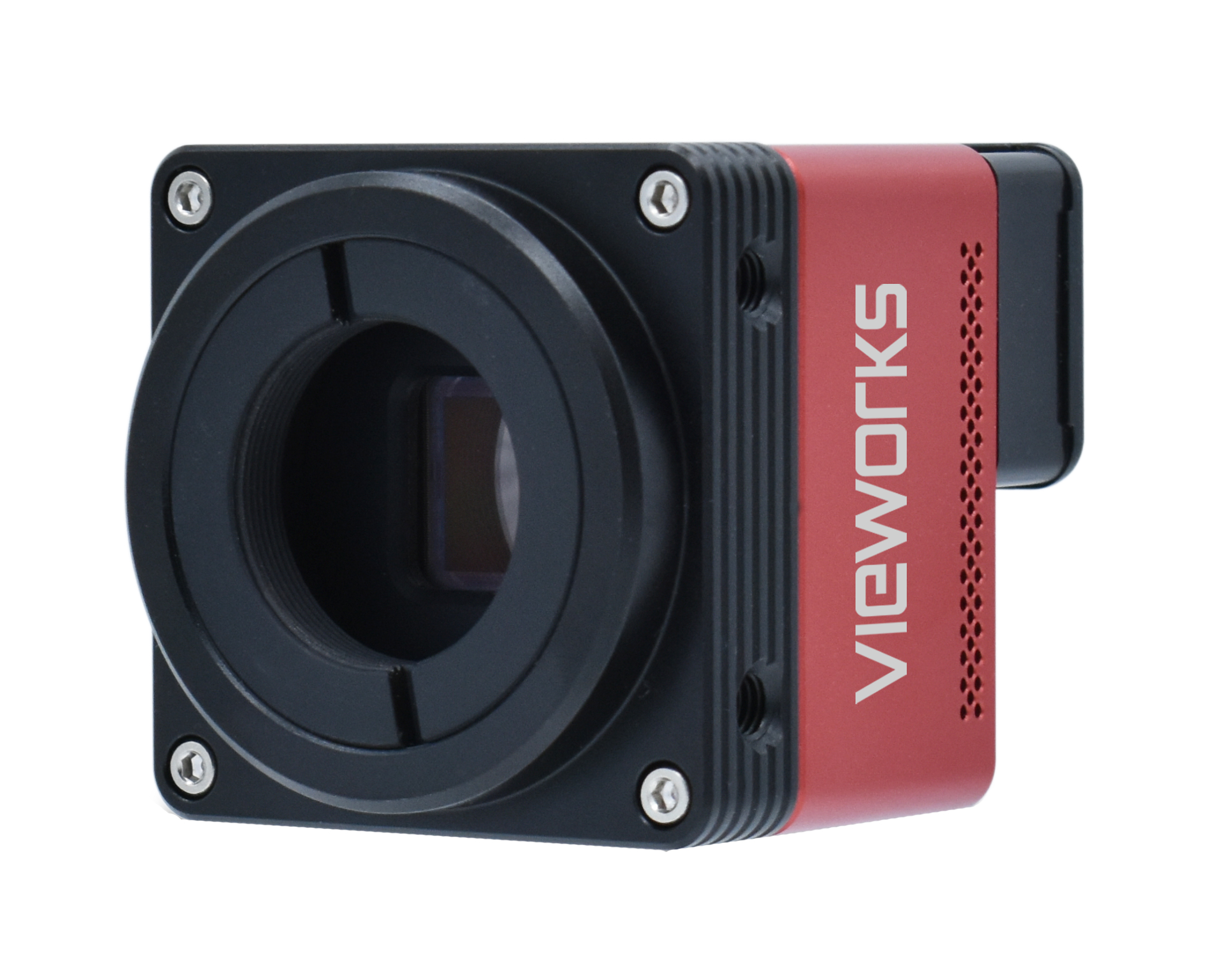

VC-25MC-C 30 D

Resolution (MP)

25

Resolution (H x V)

5120 x 5120

Sensor

ON Semiconductor VITA-25K

Sensor Size (Diagonal)

23.04 mm x 23.04 mm (32.58 mm)

Optical Format

APSH

Sensor Type

High Speed CMOS Image Sensor

Pixel Size

4.5 µm x 4.5 µm

Interface

Camera Link

Max Frame Rate

2 Tap:

N/A

4 Tap:

N/A

8 Tap:

25.3 fps

10 Tap:

30.1 fps

Transfer Time

2 Tap:

N/A

4 Tap:

N/A

8 Tap:

39.5 ms

10 Tap:

33.2 ms

Pixel Data Format

8 bit (2/4/8/10 Tap)

10 bit (2/4/8 Tap)

Electronic Shutter

Global

Digital Gain

1x – 32x

Black Level Control

0 – 255 LSB at 12 bit (1 LSB step)

Data Output Pixel Clock Speed

85 MHz

Trigger Mode

Free Run, Trigger

Programable Exposure Time and Trigger Polarity

Dynamic Range

59 dB

Dimension

68 mm x 68 mm x 80 mm

Weight

432 g

Temperature

Operating: 0° C – 40° C

Storage: -40° C – 70° C

Lens Mount

F Mount

Power

10 – 14 V DC

Typ 7 W

Compliance

CE, FCC, KC
