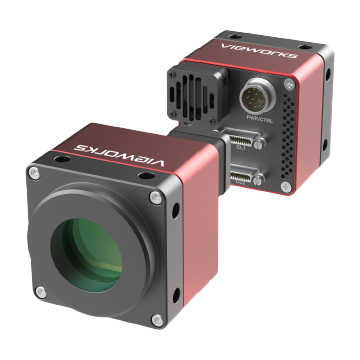

VC-25MC-M 31 I

Resolution (MP)

25

Resolution (H x V)

5120 x 5120

Sensor

Gpixel GMAX 0505

Sensor Size (Diagonal)

12.8 mm x 12.8 mm (18.1 mm)

Optical Format

1.1”

Sensor Type

High Speed CMOS Image Sensor

Pixel Size

2.5 µm x 2.5 µm

Interface

Camera Link Base / Medium / Full / 10 Tap

Max Frame Rate

2 Tap:

6.4 fps

4 Tap:

12.7 fps

8 Tap:

25.2 fps

10 Tap:

31.7 fps

Exposure Time (1 µs step)

1 µs – 60 s

Partial Scan (Max Speed)

546.4 fps at 4 Lines

Pixel Data Format

Mono

Mono 8 / Mono 10 / Mono 12

Color

GE Bayer 8 / GE Bayer 10 / GE Bayer 12

Electronic Shutter

Global

Digital Gain

1x – 32x

Black Level Control

0 – 255 LSB at 12 bit

Trigger Synchronization

Free-Run, Hardware Trigger, or CC1

External Trigger

3.3 V – 24.0 V, 10 mA, Logical Level Input, Optically Isolated

Dynamic Range

65 dB

Dimension

50.0 mm x 50.0 mm x 56.0 mm

Weight

210 g

Temperature

Operating: 0° C – 40° C

Storage: -40° C – 70° C

Lens Mount

C Mount

Power

11 – 24 V DC

Typ 6 W

Compliance

CE, FCC, KC
