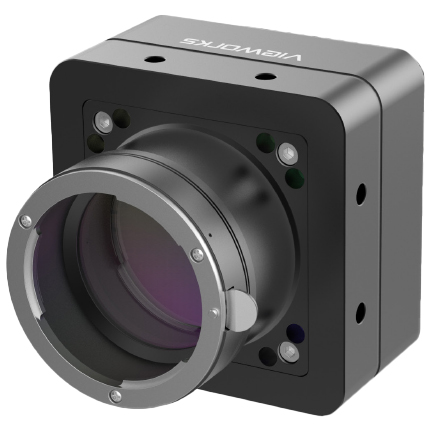

VC-25MX-M 72

Resolution (MP)

25

Resolution (H x V)

5120 x 5120

Sensor

ON Semi VITA-25K

Sensor Size (Diagonal)

23.04 mm x 23.04 mm (32.58 mm)

Optical Format

35 mm

Sensor Type

High Speed CMOS Image Sensor

Pixel Size

4.5 µm x 4.5 µm

Interface

CoaXPress

Max Frame Rate

1 CH: N/A

2 CH: 46 fps @ 6.25 Gbps

4 CH: 72 fps @ 6.25 Gbps

Exposure Time (1 µs step)

1 µs – 60 s

Partial Scan (Max Speed)

7692 fps at 4 Lines (H: 256)

Pixel Data Format

8 bit, 10 bit

Electronic Shutter

Global

Gain Control

1x – 4x

Black Level Control

0 – 16 LSB at 8 bit

0 – 64 LSB at 10 bit

Trigger Synchronization

Free Run, Timed, Trigger Width

Dynamic Range

54 dB

Dimension

80 mm x 80 mm x 120 mm

Weight

610 g

Temperature

Operating: -5° C – 40° C

Storage: -40° C – 70° C

Lens Mount

F Mount

Power

External

10 – 38 V DC Typ 10.5 W

PoCXP

24 V DC, Minimum of two PoCXP cables required

Compliance

CE, FCC, KC
