VC-25MX2-M 150 I14-NIR

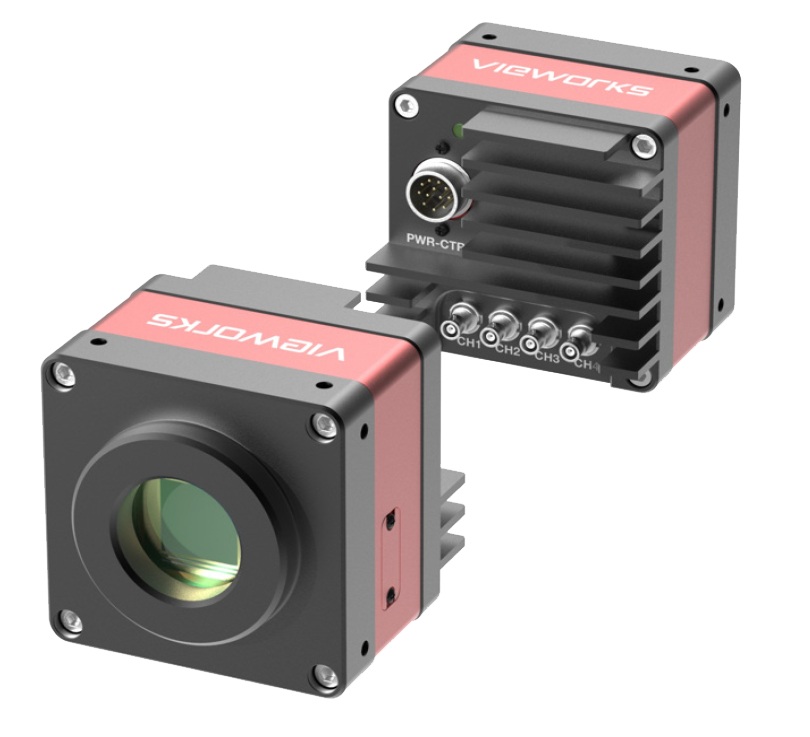

The VC-25MX2-M/C150I Cameras, the latest model of the industrial proven VC series, are new 25-megapixel CoaXPress cameras and based on the CMOS global shutter image sensor technology(GMAX0505) from Gpixel. The VC-25MX2-150I cameras offer up to 150.2 frames per second at 5,120× 5,120 resolution.The cameras come with the next generation CoaXPress 2.0 (CXP-12) interface delivering up to 50 Gi-gabits per second over four coaxial cables. These combinations of the CMOS sensor technology andCoaXPress 2.0 interface set a new standard for industrial, scientific and surveillance digital imagingapplications.Customers in the industrial market can take advantage of simple coax cabling to transmit images at ratesand distance above and beyond previous standards. These high-speed and high-resolution camerasare ideal for wide range of demanding applications such as FPD, PCB and semiconductor inspections.For wide range of choice, Vieworks provides this amazing product in two different types, the fan typeand the heat sink type, with the same specification.

RESOLUTION (MP)25

RESOLUTION (HxV)5,120 × 5,120

FPS150.2

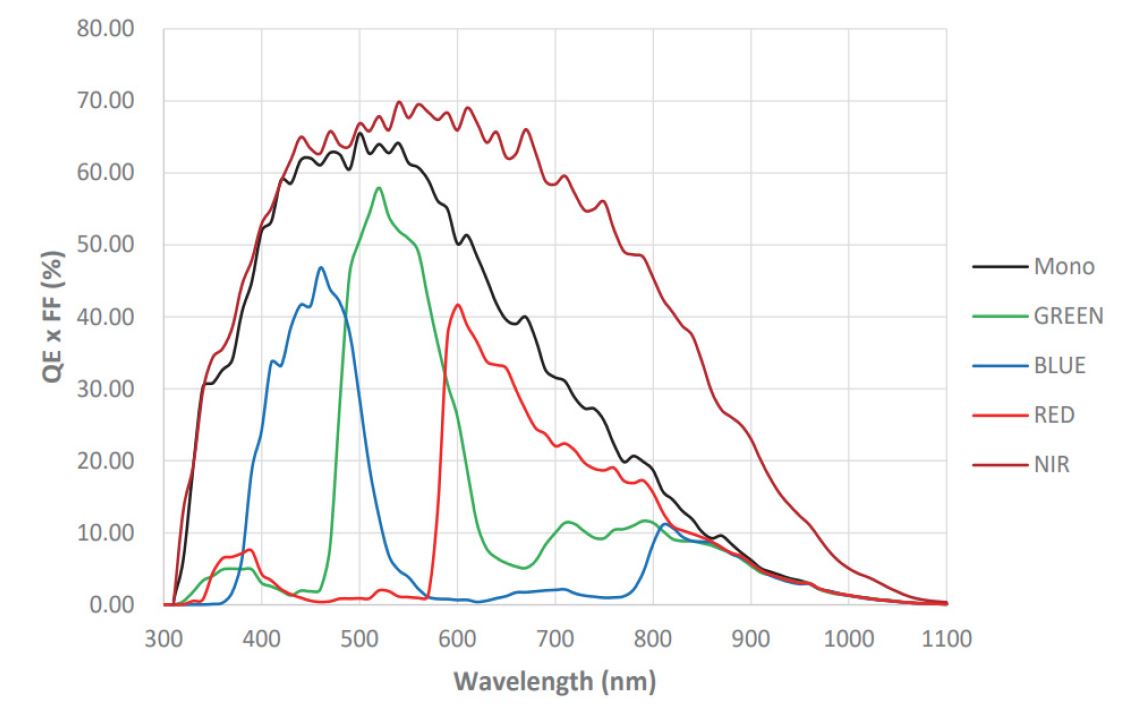

Sensor TypeGMAX0505RF (NIR enhanced)

InterfaceCXP–12 × 4

ChromaMono

High Speed 25 Megapixel CMOS Image Sensor
CoaXPress 2.0 Interface up to 150.2 fps at 50 Gbpsusing 4 CH
Global Shutter CMOS Technology
DSNU and PRNU Correction
Flat Field Correction
Defective Pixel Correction
GenICam Compatible – XML based Control

Flat Panel Display Inspection
Electronics Inspection
Semiconductor Inspection
Document / Film Scanning

Model	VC–25MX2–M/C150I–HS	VC–25MX2–M/C150I	VC–25MX2–M/C150I–NIR
Resolution (H × V)	5,120 × 5,120
Sensor	GMAX0505 (Monochrome/Color)		GMAX0505RF (NIR enhanced)
Sensor Size (Diagonal)	12.8 mm × 12.8 mm (18.1 mm)
Sensor Type	High Speed CMOS Image Sensor
Pixel Size	2.5 μm × 2.5 μm
Interface	CXP–12 × 4
Max. Frame Rate (8 bit)	93.1 fps	145.6 fps	150.2 fps
CXP–6 × 4	149.9 fps
Exposure Time (1 μs step)	1 μs – 60 s
Partial Scan (Max. Speed)	16472 fps at 4 Lines	9022 fps at 4 Lines
Pixel Data Format	Mono	Mono 8 / Mono 10	Mono 10
Color Format	GB Bayer 8 / GB Bayer 10		–
Electronic Shutter	Global Shutter
Gain Control	1× – 32×
Black Level Control	0 – 63 LSB at 10 bit
Trigger Synchronization	Free–Run, Hardware Trigger, Software Trigger or CXP
External Trigger	3.3 V ~ 24.0 V, Logical Level Input, Optically Isolated
Software Trigger	Asynchronous, Programmable via Camera API
Dynamic Range	61 dB
Dimension / Weight	62.0 mm × 62.0 mm × 60.5 mm, 373 g (C–mount)	80.0 mm × 80.0 mm × 69.4 mm, 560 g (C–mount)
Temperature	Operating: 0°C ~ 40°C, Storage: −40°C ~ 70°C
Lens Mount	C–mount, Custom mount available upon request
Power (External)	11 – 24 VDC		–
Power Dissipation	Typ. 12.5 W	Typ. 14.0 W
Power (PoCXP)	24 VDC, Minimum of two PoCXP cables required
Compliance	CE, FCC, KC
API SDK	Vieworks Imaging Solution 7.X

VC-25MX2-M 150 I14-NIR - DATASHEET
