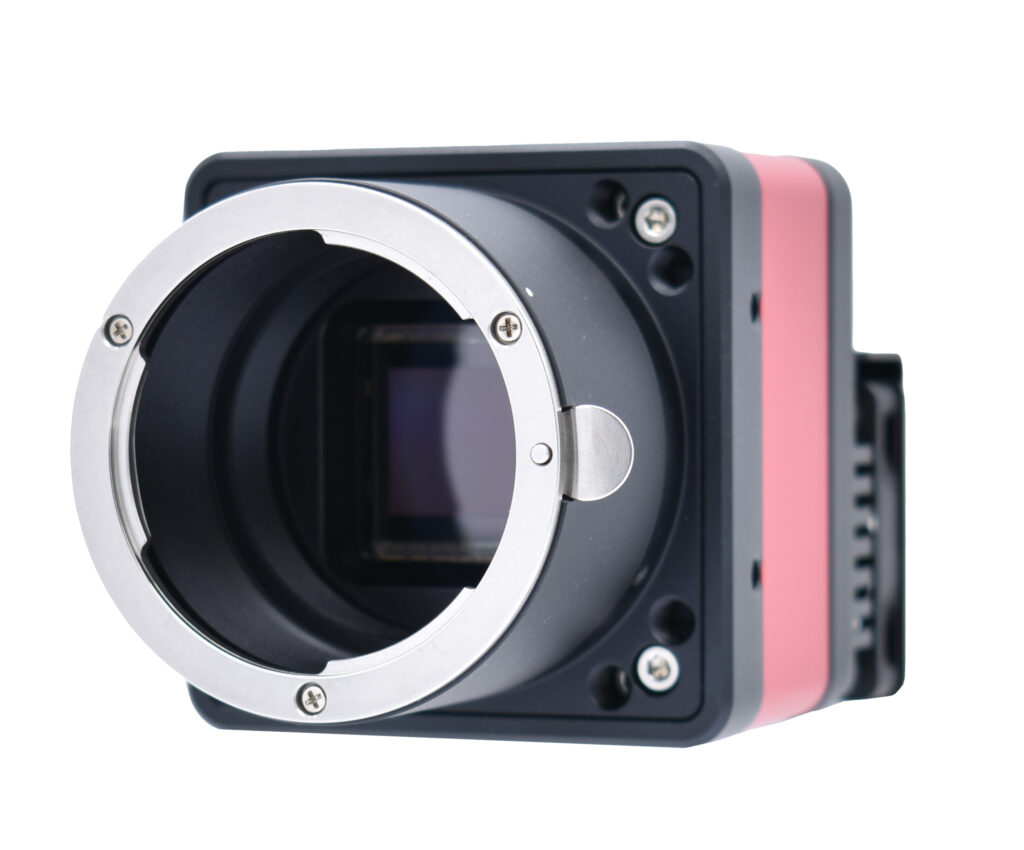

VC-31MC-M 26 H

Resolution (MP)

31

Resolution (H x V)

6464 x 4852

Sensor

Sony IMX 342

Sensor Size (Diagonal)

22.30 mm x 16.73 mm (27.9 mm)

Optical Format

APS-C

Sensor Type

High Speed CMOS Image Sensor

Pixel Size

3.45 µm x 3.45 µm

Interface

Camera Link Base / Medium / Full / 10 Tap

Max Frame Rate

2 Tap:

5.3 fps

4 Tap:

10.6 fps

8 Tap:

21.1 fps

10 Tap:

26.2 fps

Exposure Time (1 µs step)

2.4 µs – 60 s

Partial Scan (Max Speed)

1442.3 fps at 4 Lines

Binning

Sensor

x1, x2 (Horizontal and Vertical Dependent)

Pixel Data Format

Mono

Mono 8 / Mono 10 / Mono 12

Color

RG Bayer 8 / RG Bayer 10 / RG Bayer 12

Electronic Shutter

Global

Digital Gain

1x – 32x

Black Level Control

0 – 255 LSB at 12 bit

Trigger Synchronization

Free-Run, Hardware Trigger, Software Trigger or CC1

External Trigger

3.3 V – 24.0 V, 10 mA, Logical Level Input Optically Isolated

Software Trigger

Asynchronous, Programable via Camera API

Dynamic Range

72 dB

Dimension

68.0 mm x 68.0 mm x 105.0 mm

Weight

537 g

Temperature

Operating: 0° C – 40° C

Storage: -40° C – 70° C

Lens Mount

F Mount

Power

11 – 24 V DC

Typ 17 W

Compliance

CE, FCC, KC (in preparation)
