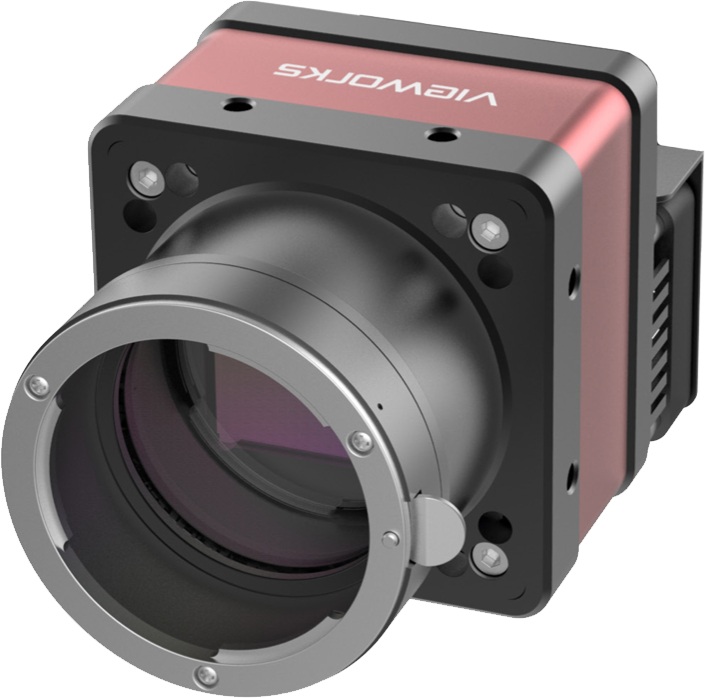

VC-31MX-M 35 H

Resolution (MP)

31

Resolution (H x V)

6464 x 4852

Sensor

Sony IMX 342

Sensor Size (Diagonal)

22.30 mm x 16.73 mm (27.9 mm)

Optical Format

APS-C

Sensor Type

High Speed CMOS Image Sensor

Pixel Size

3.45 µm x 3.45 µm

Interface

CoaXPress

Max Frame Rate

8 bit

35..4 fps

10 bit

35.4 fps

12 bit

25.8 fps

Exposure Time (1 µs step)

2.4 µs – 60 s

Partial Scan (Max Speed)

1464.7 fps at 4 Lines

Pixel Data Format

Mono

Mono 8 / mono 10 / Mono 12

Color

RG Bayer 8 / RG Bayer 10 / RG Bayer 12

Electronic Shutter

Global

Gain Control

1x – 32x

Black Level Control

0 – 255 LSB at 12 bit

Trigger Synchronization

Free Run, Hardware Trigger, Software Trigger or CXP

External Trigger

3.3 V – 24.0 V, 10 mA, Logical Level Input, Optically Isolated

Software Trigger

Asynchronous, Programmable via Camera API

Dynamic Range

72 dB

Dimension

68 mm x 68 mm x 105 mm

Weight

550 g

Temperature

Operating: 0° C – 40° C

Storage: -40° C – 70° C

Lens Mount

F Mount

Power

External

11 – 24 V DC Typ 17 W

PoCXP

24 V DC, Minimum of two PoCXP cables required

Compliance

CE, FCC, KC
