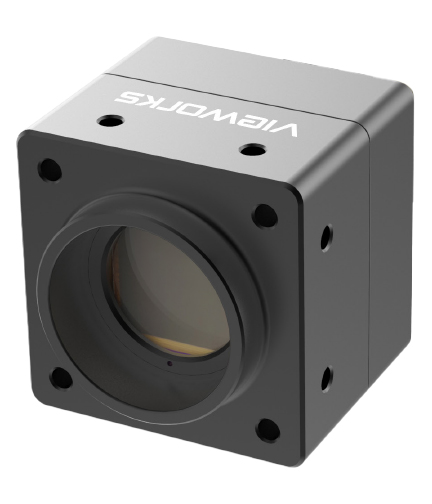

VC-4MX-M 144 F

The VC-4MX camera features 4 megapixel resolution with frame rate up to 144 fps. This combination of global shutter, resolution and frame rate sets a new standard for industrial, scientific and surveillance digital imaging applications. Customers in the industrial market can take advantage of common coax cabling to transmit images at rates and distance above and beyond previous standards. With this camera, image data can be transmitted at up to 6.25 Gbps using a single coaxial cable. Featuring high quality image and high speed, this camera is ideal for wide range of demanding applications including PCB and semiconductor inspections.

RESOLUTION (MP)4

RESOLUTION (HxV)2048 × 2048

FPS144

Sensor TypeCMV4000

InterfaceCXP-6

ChromaMono

4 Megapixel Resolution
Global Shutter CMOS Technology
CoaXPress Interface up to 144 fps at 6.25 Gbps
Reverse X / Reverse Y
Defective Pixel Correction
Low Noise with Optimized Heat Treatment

PCB Inspection
Semiconductor Inspection
3D Inspection
High End Surveillance

Resolution (MP)	4
Resolution (H x V)	2048 x 2048
Sensor	CMOSIS CMV 4000
Sensor Size	11.26 mm x 11.26 mm
Optical Format	1”
Sensor Type	High Speed CMOS Image Sensor
Pixel Size	5.5 µm x 5.5 µm
Interface	Camera Link
Max Frame Rate	144 fps @ 6.25 Gbps
Exposure Time (1 µs step)	1 µs – 60 s
Pixel Data Format	Mono 8
Electronic Shutter	Global
Trigger Synchronization	Free Run, Hardware Trigger or CXP
External Trigger	3.3 V – 24.0 V, 10 mA, Logical Level Input, Optically Isolated
Dynamic Range	53 dB
Dimension	40 mm x 40 mm x 41 mm
Weight	200 g
Temperature	Operating: 0° C – 40° C	Storage: -40° C – 70° C
Lens Mount	C Mount
Power	10 – 14 V DC Typ 3.5 W

VC-4MX-M 144 F - DATA SHEET
