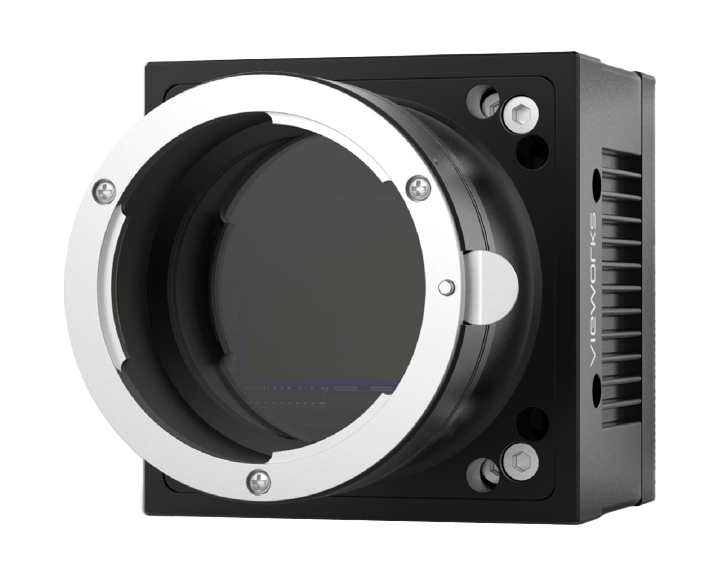

VC-50MC machine vision camera
VC-50MC-C 18 : CMV50000 Camera Link Color

VC-50MC-C 18

The VC-50MC uses the latest 50 megapixel CMOS imaging sensor (CMV50000) technology from AMS CMOSIS, and offers up to 17.5 frames per second at 7920 x 6004 resolution. Equipped with the Vieworks innovative technology, trusted by the world’s top FPD manufacturers, the VC-50MC camera offers highly uniformed images with high speed image processing capabilities. Featured with high quality image uniformity and high resolution, this camera is ideal for demanding applications such as FPD, PCB and semiconductor inspections.
RESOLUTION (MP)50
RESOLUTION (HxV)7920 Ă— 6004
FPS17.5
Sensor TypeCMV50000
InterfaceCamera Link
ChromaColor
  • 50 Megapixel CMOS Image Sensor
  • Camera Link Full Interface up to 17.5 fps
  • Global Shutter CMOS Technology
  • DSNU and PRNU Correction
  • Flat Field Correction
  • Pixel Defect Correction
  • GenICam Compatible – XML based Control
  • Flat Panel Display Inspection
  • PCB Inspection
  • Machine Vision Inspection
  • Microscopy and Metrology
Resolution (MP) 50
Resolution (H x V) 7920 x 6004
Sensor AMS CMOSIS CMV 50000
Sensor Size (Diagonal) 36.43 mm x 27.62 mm (45.72 mm)
Optical Format 35 mm
Sensor Type High Speed CMOS Image Sensor
Pixel Size 2.5 µm x 2.5 µm
Interface Camera Link Base / Medium / Full / 10 Tap
Max Frame Rate 2 Tap: 3.5 fps
  4 Tap: 7.1 fps
  8 Tap: 14.1 fps
  10 Tap: 17.5 fps
Exposure Time (1 µs step) 1 µs – 60 s
Partial Scan (Max Speed) 546.4 fps at 4 Lines
Pixel Data Format 8 bit (2/3/4/8/10 Tap), 10 bit (2/4/8 Tap), 12 bit (2/4 Tap)
Electronic Shutter Global
Digital Gain 1x – 30x (1 / 1024 step)
Black Level Control 0 – 256 LSB at 12 bit (1 LSB step)
Data Output Pixel Clock Speed 85 MHz / 65 MHz
Trigger Synchronization Free-Run, Timed and Trigger Width
Dynamic Range 64 dB
Dimension 68.0 mm x 68.0 mm x 102.0 mm
Weight 432 g
Temperature Operating: 0° C – 40° C Storage: -40° C – 70° C
Lens Mount F Mount
Power 10 – 24 V DC

Typ 9 W

Compliance CE, FCC, KC
