VC-51MX2-M 30

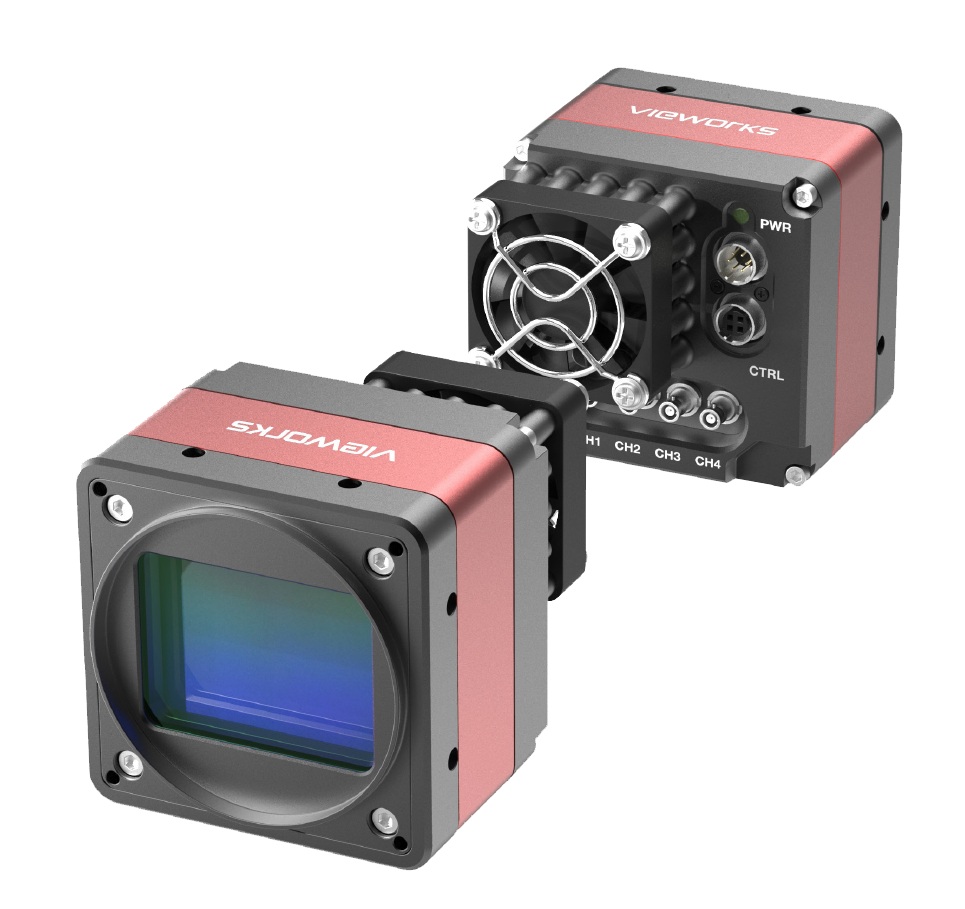

The VC-51MX2-M/C30I00 is a new 51-megapixel CoaXPress camera based on GMAX4651, the latest CMOS image sensor technology, from Gpixel. It offers up to 30 frames per second at 8,416 × 6,032 resolution. The camera comes with the next generation CoaXPress 2.0 (CXP-12) interface, delivering up to 50 Gigabits per second over 4 coaxial cables. With advanced uniformity and high-speed image processing capabilities, it sets a new standard for high-performance digital imaging in industrial, scientific, and surveillance fields. This camera is ideal for demanding applications such as FPD, PCB, and semiconductor inspections.

RESOLUTION (MP)51

RESOLUTION (HxV)8,416 × 6,032

FPS30.3

Sensor TypeGMAX4651

InterfaceCoaXPress 2.0 (CXP–6/10/12)

ChromaMono

51-Megapixel Resolution
CoaXPress 2.0 Interface up to 30 fpsat 50 Gbps using 4 Channels
Power over CoaXPress (PoCXP)
Global Shutter CMOS Technology
DSNU and PRNU Correction
Flat Field Correction
Defective Pixel Correction

Flat Panel Display Inspection
Electronics Inspection
Semiconductor Inspection
Document / Film Scanning

Model	VC–51MX2–M/C3010O
Resolution (H × V)	8,416 × 6,032
Sensor	GMAX4651
Sensor Size (Diagonal)	38.8 mm × 27.8 mm (47.63 mm)
Pixel Size	4.6 μm × 4.6 μm
Interface	CoaXPress 2.0 (CXP–6/10/12)
Max. Frame Rate (8 bit)	30.3 fps
Exposure Time (1 μs step)	1 μs to 20 s
Binning	Horizontal and Vertical Independent: ×1, ×2, and ×4 (Mono Only)
Pixel Data Format	Monochrome: 8/10/12 bit Color: RG Bayer 8/10/12 bit
Electronic Shutter	Global Shutter
Exposure Mode	Timed, Trigger Width
Dynamic Range	65 dB at 12 bit
Gain Control	Analog: ×3.5 to ×5 Digital: ×1 to ×32
Black Level Control	0 to 256 LSB at 12 bit
Dimension / Weight	FAN: 68 mm × 68 mm × 79 mm, 0.47 kg Heatsink: 168 mm × 68 mm × 83 mm, 0.45 kg
Temperature	Operating: 0°C to 40°C, Storage: −40°C to 70°C
Trigger Synchronization	Free–Run, Hardware Trigger, Software Trigger, and CXP
External Trigger	3.3 V to 24.0 V, Logical Level Input, Optically Isolated
Software Trigger	Asynchronous, Programmable via Camera API
Lens Mount	M58 mount, F–mount adapter, or custom mount available upon request
Power (External)	11 to 24 V DC
Power Dissipation	Typ. 11.5 W
Power (PoCXP)	24 V DC, Minimum 2 PoCXP cables required
Compliance	CE, FCC, KC
API SDK	Vieworks Imaging Solution 7.X
