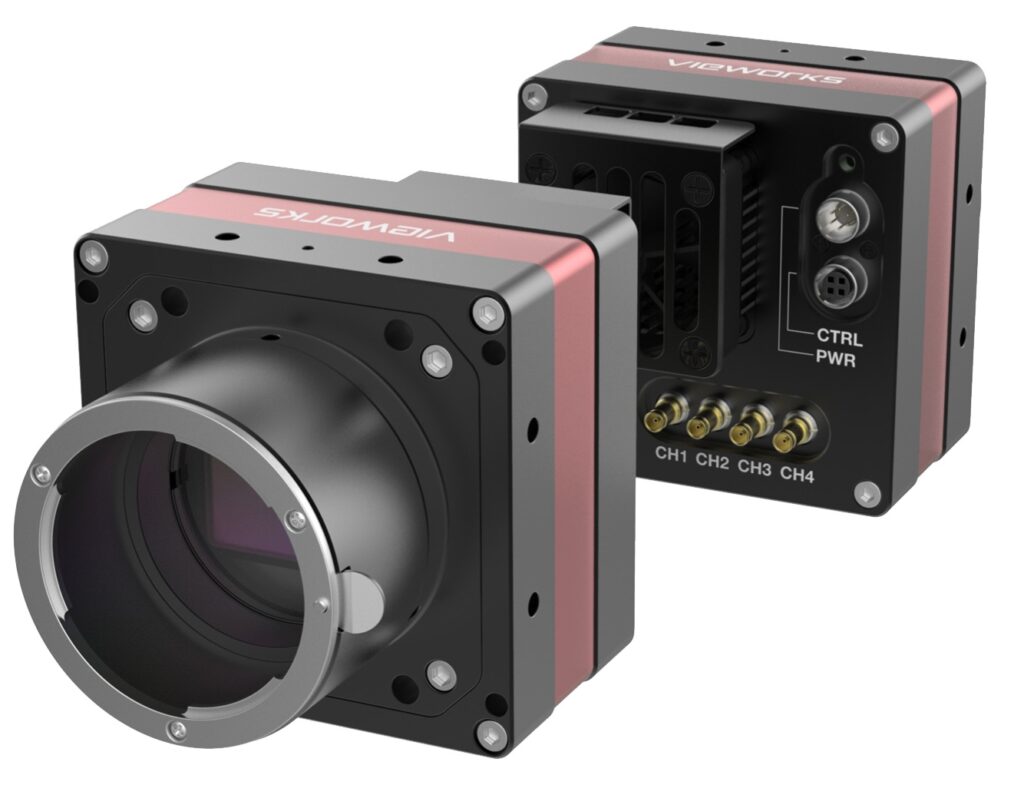

VC-61MX-M 18 H

Resolution (MP)

61

Resolution (H x V)

9568 x 6380

Sensor

Sony IMX 455

Sensor Size (Diagonal)

35.98 mm x 23.99 mm (43.3 mm)

Optical Format

2.7”

Sensor Type

High Speed CMOS Image Sensor

Pixel Size

3.76 µm x 3.76 µm

Interface

CoaXPress

Max Frame Rate

8 / 10 / 12 bit: 17.93 fps

14 bit: 9.99 fps

16 bit: 3.98 fps

Exposure Time (1 µs step)

17.33 µs – 60 s

Binning

Sensor

x1, x2, x3 (Horizontal and Vertical Dependent, 8/10/12 bit only)

Logic

x1, x2, x4 (Horizontal and Vertical Dependent)

Pixel Data Format

Mono 8 / Mono 10 / Mono 12 / Mono 14 / Mono 16

BG Bayer 8 / BG Bayer 10 / BG Bayer 12 / RG Bayer 14 / RG Bayer 16

Electronic Shutter

Rolling

Gain Control

1x – 32x

Black Level Control

0 – 1023 LSB at 16 bit

Trigger Synchronization

Overlapped

Free Run

Non-Overlapped

Hardware Trigger, Software Trigger, CXP or User Input0

Dynamic Range

78 dB

Dimension

80 mm x 80 mm x 107 mm

Weight

744 g

Temperature

Operating: 0° C – 40° C

Storage: -40° C – 70° C

Lens Mount

F Mount

Power

External

10 – 24 V DC, Typ 12.0 W

PoCXP

24 V DC, Minimum of two PoCXP cables required

Compliance

CE, FCC, KC
