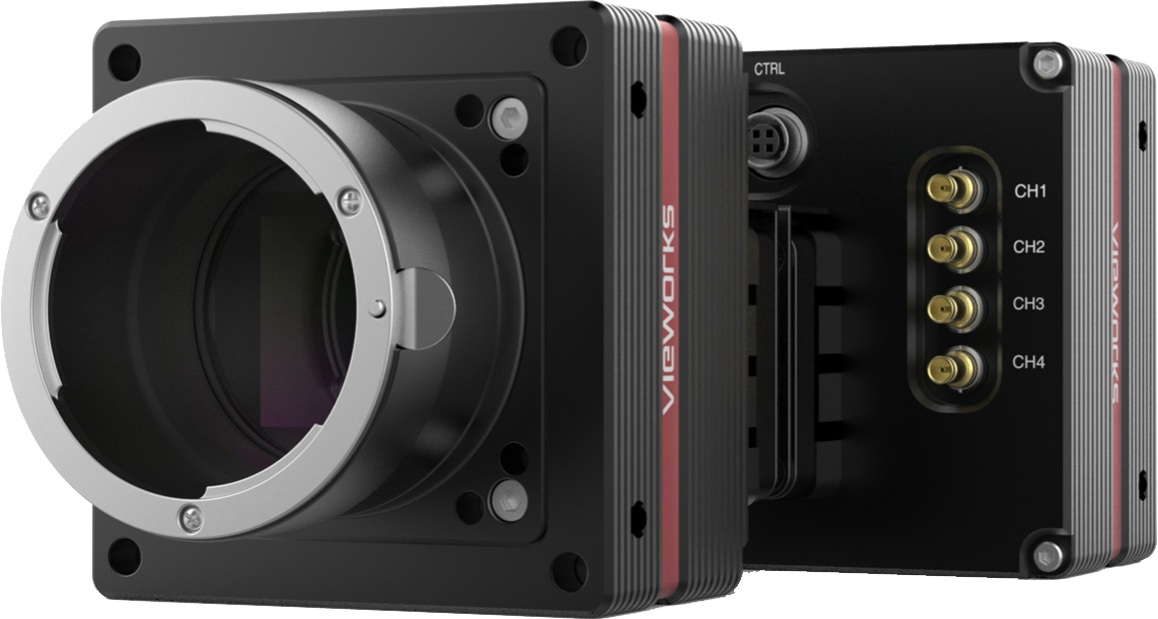

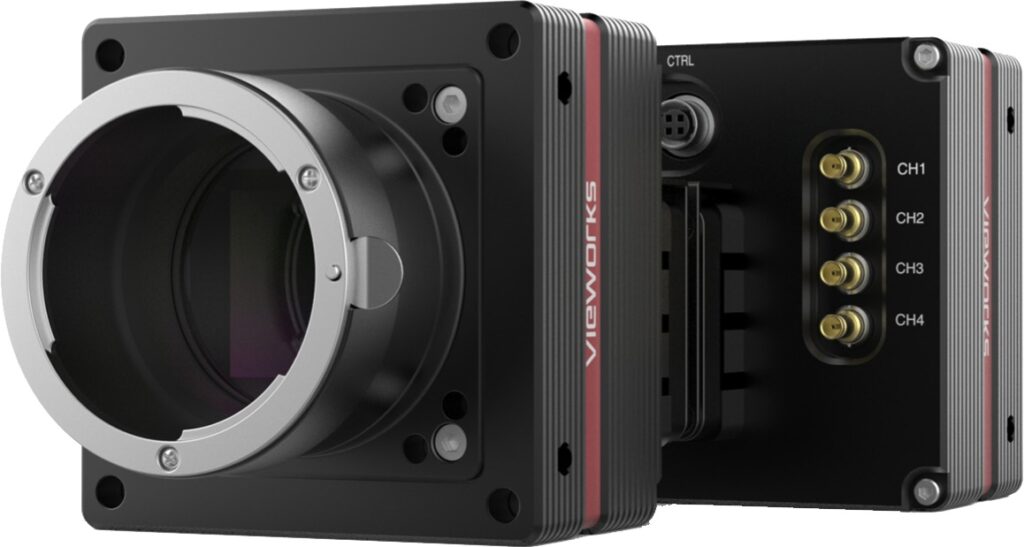

| Resolution (MP) | 65 | ||
| Resolution (H x V) | 9344 x 7000 | ||
| Sensor | Gpixel GMAX 3265 – High Speed | ||
| Sensor Size (Diagonal) | 29.9 mm x 22.4 mm (37.4 mm) | ||
| Optical Format | 2.3” | ||
| Sensor Type | High Speed CMOS Image Sensor | ||
| Pixel Size | 3.2 µm x 3.2 µm | ||
| Interface | CoaXPress | ||
| Max Frame Rate | 4 CH: 35.5 fps @ 8 bit | ||
| 4CH: 27.5 fps @ 10 bit | |||
| 4 CH: N/A | |||
| 4 CH: 71.1 fps @ 8 bit (2×2 Binning) | |||
| Exposure Time (1 µs step) | 12 µs – 60 s | ||
| Partial Scan (Max Speed) | 7142.8 fps at 4 lines | ||
| Binning | 2 x 2 Binning | ||
| Pixel Data Format | Mono 8 / Mono 10
GB Bayer 8 / GB Bayer 10 |
||
| Electronic Shutter | Global | ||
| Gain Control | 1x – 32x | ||
| Black Level Control | 0 – 63 LSB at 10 bit | ||
| Trigger Synchronization | Free Run, Hardware Trigger, Software Trigger, or CXP | ||
| External Trigger | 3.3 V – 24.0 V, 10 mA, Logical Level Input, Optically Isolated | ||
| Software Trigger | Asynchronous, Programmable via Camera API | ||
| Dynamic Range | 62 dB | ||
| Dimension | 80 mm x 80 mm x 103 mm | ||
| Weight | 750 g | ||
| Temperature | Operating: 0° C – 40° C | Storage: -40° C – 70° C | |
| Lens Mount | F Mount | ||
| Power | External | 11 – 24 V DC, Typ 17.5 W | |
| PoCXP | 24 V DC, Minimum of two PoCXP cables required | ||
| Compliance | CE, FCC, KC | ||
