VCS-14MX2-M 340 F

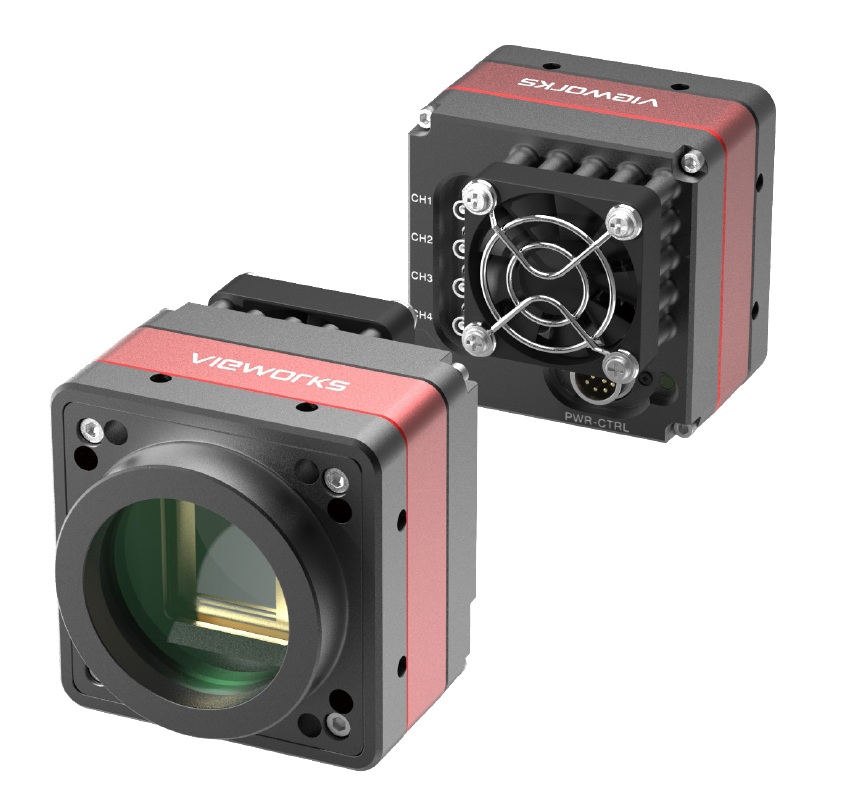

The VCS-14MX2-M/C340I camera, which offers 338 frames per second at 4,608 × 3,072 resolution, deliv-ers not only fast frame rates but also highly uniform images. With CoaXPress 2.0 interface, it can transmit image data at up to 50 Gbps using four coaxial cables. The back-side illuminated sensor significantly en-hances image sensitivity. Combining high speed and high performance, the VCS-14MX2-M/C340I camera is an excellent choice for applications that require high data rates and resolutions—such as flat panel display, PCB, and semiconductor inspections.For a wide range of choice, this amazing product is provided in two different types: a fan type and a heat sink type, both with the same specification.

RESOLUTION (MP)14

RESOLUTION (HxV)4,608 × 3,072

FPS84

Sensor TypeGSPRINT5514

InterfaceCoaXPress 2.0 (CXP-12)

ChromaMono

High Speed 14 Megapixel CMOS Image Sensor
BSI (Backside Illuminated) CMOS Image Sensor
CoaXPress 2.0 Interface up to 338 fps at 50 Gbps using 4 CH
Global Shutter CMOS Technology
DSNU and PRNU Correction
Flat Field Correction
Defective Pixel Correction
GenICam Compatible – XML based Control
Low-gain and high-gain composite image

FPD and Electronics Inspection
Semiconductor Inspection
Research and Scientific Imaging
Document / Film Scanning

Model	VCS-14MX2-M/C340I	VCS-14MX2-M/C340I-HS

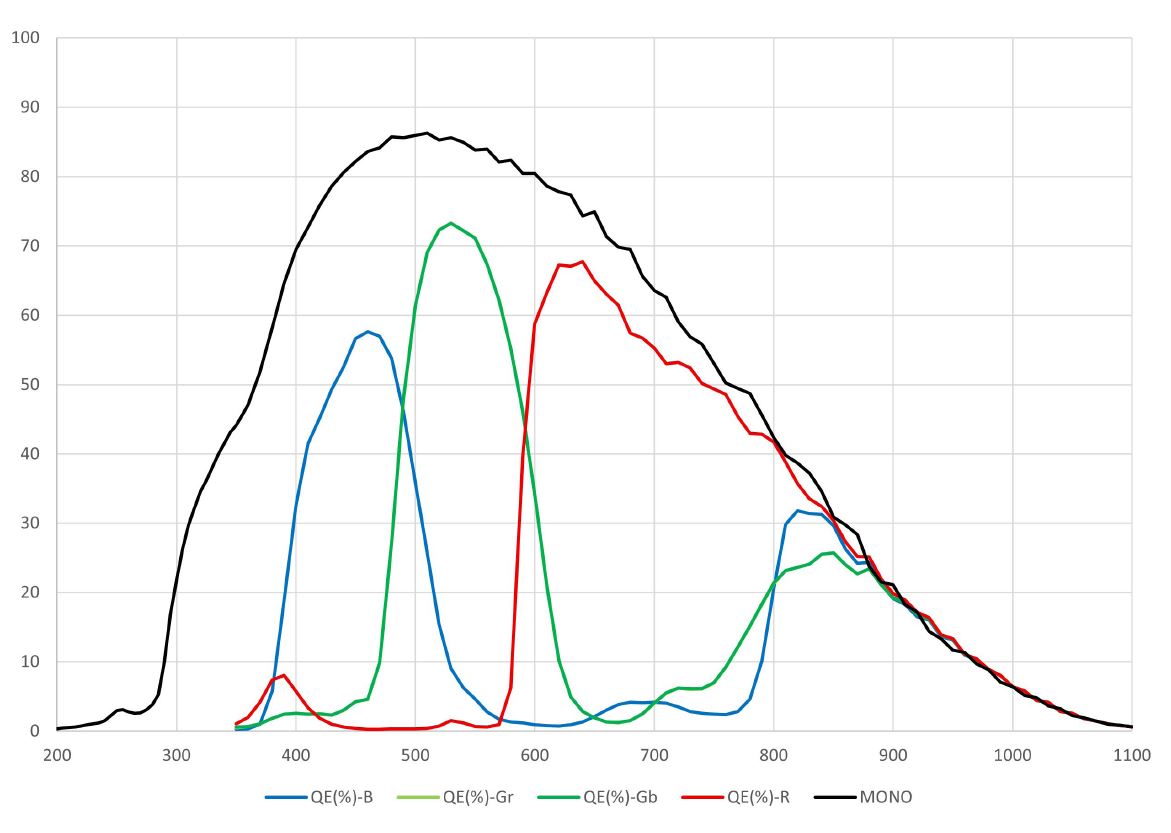

Resolution (H × V)	4,608 × 3,072
Sensor	GSPRINT5514
Optical Format (Diagonal)	25.34 mm × 16.90 mm (30.5mm)
Sensor Type	High Speed CMOS Image Sensor
Pixel Size	5.5 μm × 5.5 μm
Interface	CoaXPress 2.0 (CXP-12)
Max. Frame Rate (8 bit)	CXP-12 × 1	84 fps
	CXP-12 × 2	169 fps
	CXP-12 × 4	338 fps
Exposure Time	4 μs to 60 s
Partial Scan (Max. Speed)	21037 fps at 32 Lines, CXP-12
Pixel Data Format	Mono	Mono 8/10/12
	Color	RG Bayer 8/10/12
Electronic Shutter	Global Shutter
Gain Control	Analog	1.0×, 1.55×, 2.17×, 2.77×, and 5.0×
	Digital	1× to 32×
Black Level Control	0 to 255 LSB at12 bit
Trigger Synchronization	Free-Run, Hardware Trigger, Software Trigger, or CXP
External Trigger	3.3 V to 24.0 V, 10 mA, Logical Level Input, Optically Isolated
Software Trigger	Asynchronous, Programmable via Camera API
Dynamic Range	Typ. 66 dB at 12 bit
Dimension / Weight	68mm × 68mm × 83.3mm, 460 g	68mm × 68mm × 86.6mm, 470 g
Temperature	Operating: 0°C to 40°C, Storage: −40°C to 70°C
Lens Mount	M42 mount, Custom mount available upon request
Power	External	11 to 24 VDC
	Dissipation	Typ. 19 W
	PoCXP	24 VDC, Minimum of two PoCXP cables required
Compliance	CE, FCC, and KC

VCS-14MX2-M 340 F - DATASHEET
