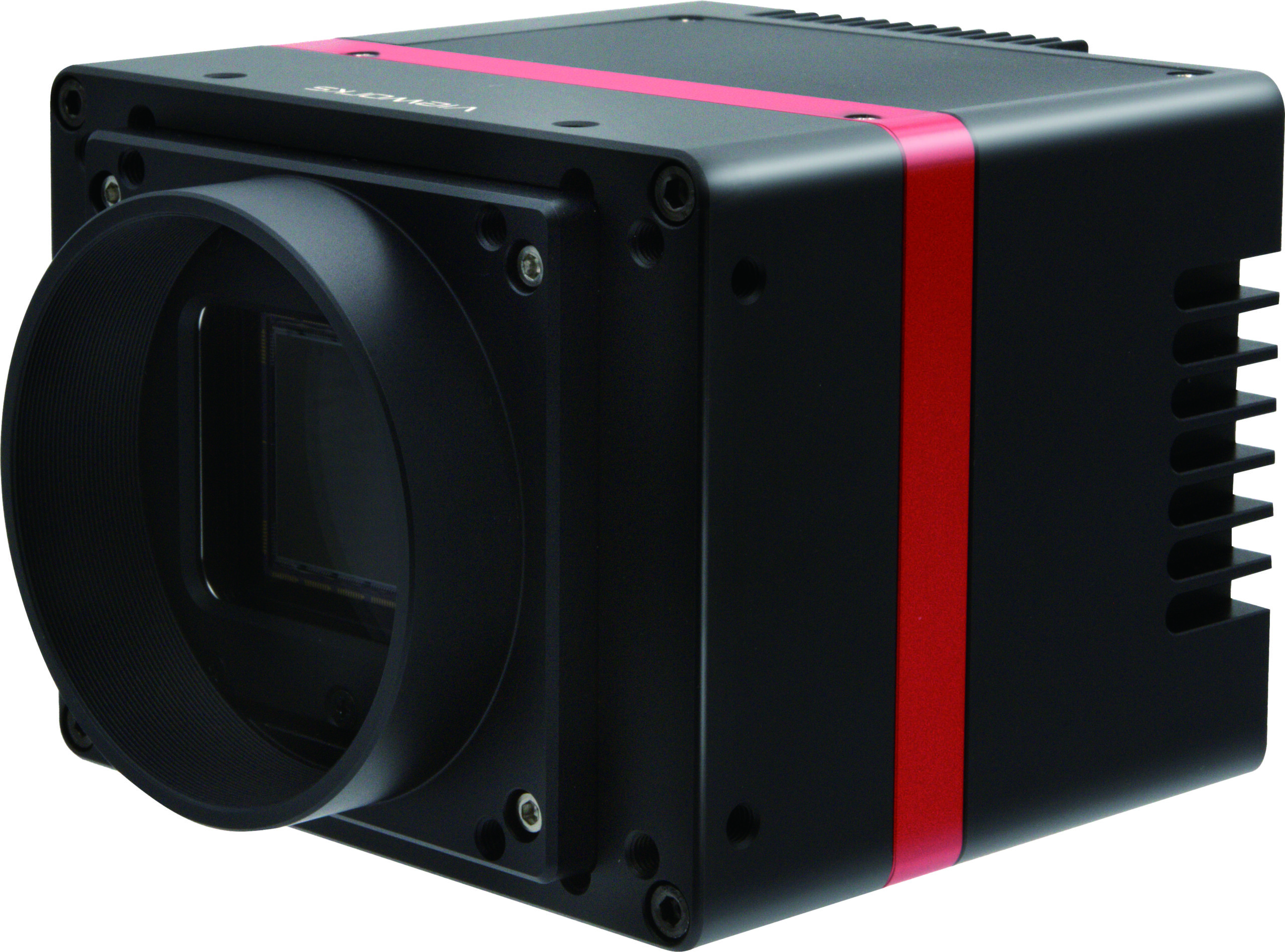

VNP-604MX-C 6 H

Resolution (H x V)

1x (1 Shot)

14192 x 10640

4x (4 Shot)

28384 x 21280

Sensor

Sony IMX 411

Sensor Size (Diagonal)

53.36 mm x 40.01 mm (66.7 mm)

Optical Format

4.2”

Sensor Type

High Speed CMOS Image Sensor

Pixel Size

3.76 µm x 3.76 µm

Interface

CoaXPress

Max Frame Rate

1x Mode

6.2 fps (with Overlapped Acquisition)

4x Mode

1.5 fps (with Overlapped Acquisition)

Exposure Time (1 µs step)

1 µs – 60 s

Partial Scan (Max Speed)

546.4 fps at 2 Lines (12 bit)

Pixel Data Format

Mono

Mono 8 / Mono 10 / Mono 12

Color

RG Bayer 8 / RG Bayer 10 / RG Bayer 12

Electronic Shutter

Rolling

Gain Control

1x – 32x

Black Level Control

0-255 LSB at 12 bit

Trigger Synchronization

Overlapped

Free Run

Non-Overlapped

Hardware Trigger, Software Trigger or CXP

Dynamic Range

78 dB

Shift Range

0-15 µm, 1 nm Step

Shift Resolution

0.001 µm

Shift Control

Manual Mode or Sequence Mode (4/9 Shot Mono, 4/16/32 Shot Color)

Shift Latency

< 5 ms

Cooling Performance

15° ± 2° C Below Ambient Temp

Dimension

110.0 mm x 110.0 mm x 137 mm

Weight

2.35 kg

Temperature

Operating: 0° C – 40° C

Storage: -40° C – 70° C

Lens Mount

M72 Mount

Power

11 – 24 V DC, Typ 31 W

Compliance

CE, FCC, KC
