VNP-604MX-M 6 H

The VNP-604MX, a pixel shifting camera equipped with thermo-electric Peltier (TEC) cooling. Designed not only for applications where extremely high resolution is required but also where high quality image is essential. The TEC maintains the operating temperature of the image sensor at up to 10 degrees below ambient temperature to reduce noise significantly. Pixel shifting technology based on a precise piezoelectric stage allows image captures as high as 604 million pixels at 1.5 fps. Its CoaXPress interface supports transmitting image data at up to 25 Gbps using four coaxial cables. This camera is ideal for applications such as FPD, PCB, and semiconductor inspections.

RESOLUTION (MP)1359

RESOLUTION (HxV)28384 x 21280

FPS6.2

Sensor TypeIMX411

InterfaceCXP-6

ChromaMono

Nano Stage Pixel Shifting Mechanism
Thermoelectric Peltier Cooled: 15° C Below Ambient Temp
Extended Resolution up to 1,359 MP
CoaXPress Interface
Electronic Rolling Shutter
Dynamic Defective Pixel Correction
Flat Field Correction with Sequencer Control
DSNU and PRNU Correction

Flat Panel Display Inspection
PCB Inspection
Semiconductor Inspection
Document / Film Scanning

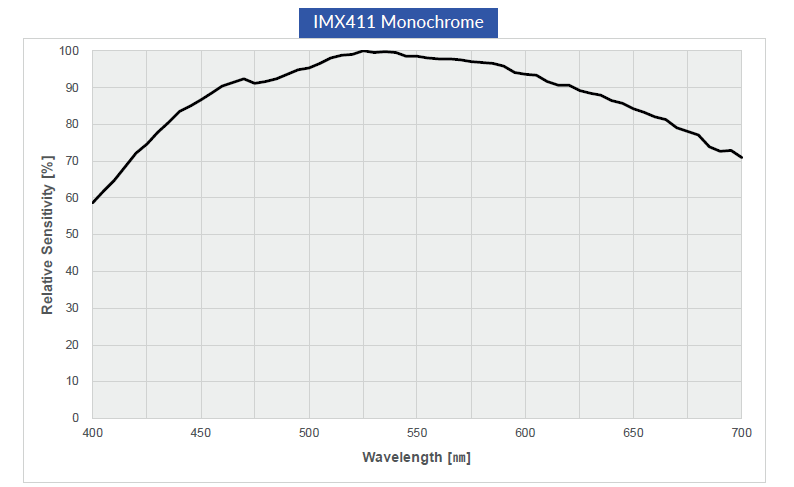

Resolution (H x V)	1x (1 Shot)		14192 x 10640
	4x (4 Shot)		28384 x 21280
Sensor			Sony IMX 411
Sensor Size (Diagonal)			53.36 mm x 40.01 mm (66.7 mm)
Optical Format			4.2”
Sensor Type			High Speed CMOS Image Sensor
Pixel Size			3.76 µm x 3.76 µm
Interface			CoaXPress
Max Frame Rate		1x Mode	6.2 fps (with Overlapped Acquisition)
		4x Mode	1.5 fps (with Overlapped Acquisition)
Exposure Time (1 µs step)			1 µs – 60 s
Partial Scan (Max Speed)			546.4 fps at 2 Lines (12 bit)
Pixel Data Format		Mono	Mono 8 / Mono 10 / Mono 12
		Color	RG Bayer 8 / RG Bayer 10 / RG Bayer 12
Electronic Shutter			Rolling
Gain Control			1x – 32x
Black Level Control			0-255 LSB at 12 bit
Trigger Synchronization	Overlapped		Free Run
	Non-Overlapped		Hardware Trigger, Software Trigger or CXP
Dynamic Range			78 dB
Shift Range			0-15 µm, 1 nm Step
Shift Resolution			0.001 µm
Shift Control			Manual Mode or Sequence Mode (4/9 Shot Mono, 4/16/32 Shot Color)
Shift Latency			< 5 ms
Cooling Performance			15° ± 2° C Below Ambient Temp
Dimension			110.0 mm x 110.0 mm x 137 mm
Weight			2.35 kg
Temperature			Operating: 0° C – 40° C	Storage: -40° C – 70° C
Lens Mount			M72 Mount
Power			11 – 24 V DC, Typ 31 W
Compliance			CE, FCC, KC

VNP-604MX-M 6 H - DATASHEET
