VP-103MX2-M 24 I

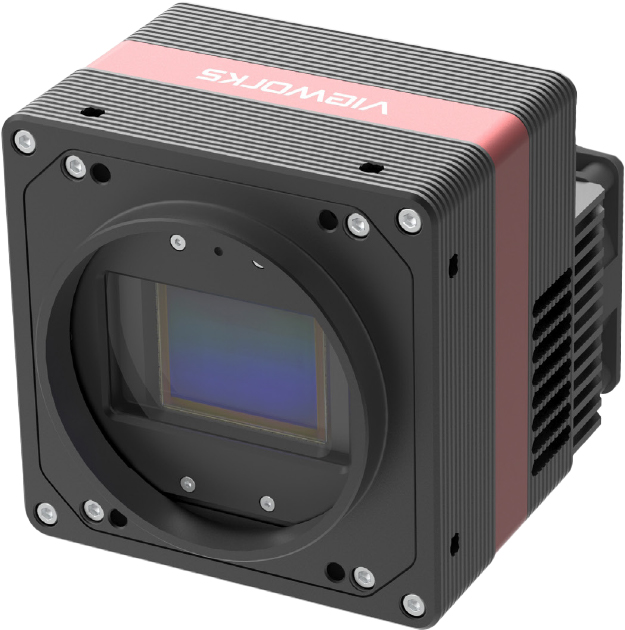

The VP-103MX2, the latest model of the industrial proven VP series, is a 103 megapixel resolution CMOS camera available with the CXP-12 interface. These cameras are based on the latest CMOS image sensor technology (GMAX32103) from Gpixel. The VP-103MX2 offers up to 24.7 frames per second at 11264 x 9200 resolution. These cameras use thermoelectric Peltier (TEC) cooling technology developed for and used by many demanding medical market customers. The TEC maintains the operating temperature of the CMOS image sensor at up to 15 degrees below ambient temperature. These cameras provide a stable operating condition and the ability to expose for a long period of time to increase camera sensitivity. Featured with the stable operating capability and high resolution, these cameras are ideal for demanding applications such as FPD, PCB and semiconductor inspections.

RESOLUTION (MP)103

RESOLUTION (HxV)11264 x 9200

FPS24.7

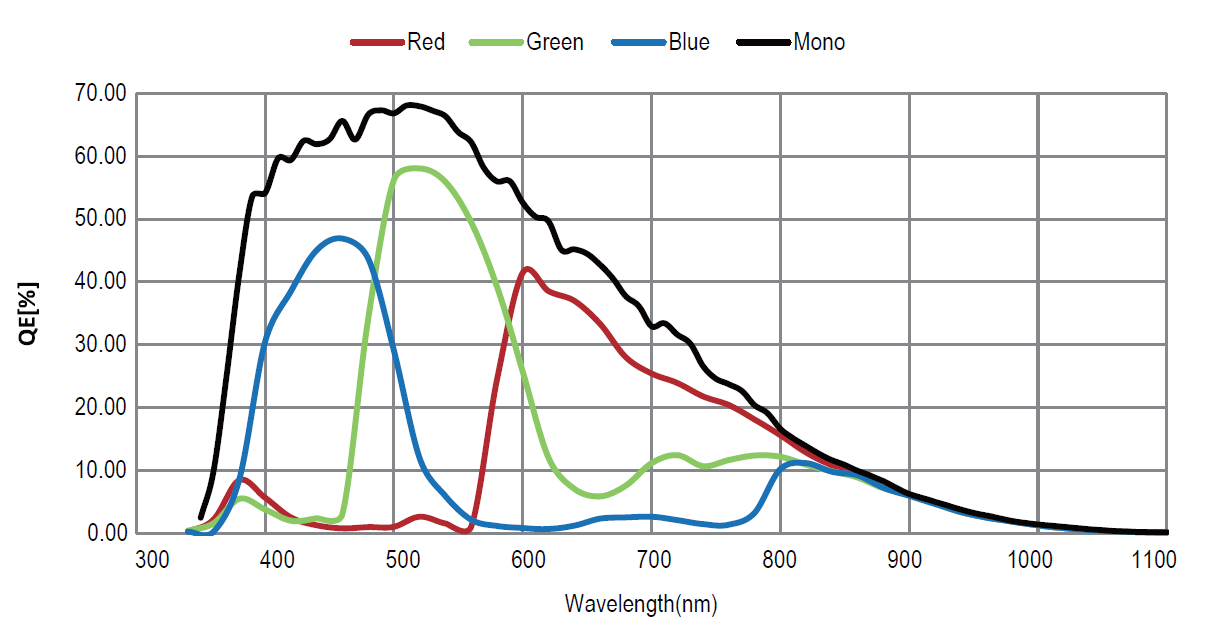

Sensor TypeGMAX32103

InterfaceCXP-12

ChromaMono

Thermoelectric Peltier Cooled – 15℃ below
103 Megapixel Resolution
CoaXPress 2.0 Interface up to 24.7 fps at 50 Gbps using 4 CH
Global Shutter
Flat Field Correction
DSNU and PRNU Correction

Flat Panel Display Inspection
Semiconductor Inspection
Electronics Inspection
Document and Film Scanning

Model	VC-25MC-M/C 30
Resolution (H x V)	5120 x 5120
Sensor	ON Semiconductor VITA 25K
Sensor Size (Optical Format)	23.04 mm x 23.04 mm (35 mm Full Frame)
Sensor Type	High Speed CMOS Image Sensor
Pixel Size	4.5 μm x 4.5 μm
Interface	Camera Link Full (8 Tap / 10 Tap)
Max. Frame Rate	8 Tap: 25.0 fps
Max. Frame Rate	10 Tap: 30.9 fps
Exposure Time	1 μs ~ 60 s (1 μs step)
Pixel Data Format	8 bit (8/10 Tap), 10 bit (8 Tap)
Data Output Pixel Clock Speed	85 MHz
Electronic Shutter	Global Shutter
Trigger Mode	Free-Run, Hardware Trigger, Software Trigger
Dynamic Range	54 dB
Binning	x1, x2 (Horizontal and Vertical Independent)
Gain Control	1x ~ 4x
Black Level Control	0 ~ 16 LSB (16 steps)
Dimension / Weight	68 mm x 68 mm x 83 mm, 420 g (F-mount)
Temperature	Operating: 0°C ~ 40°C, Storage: -40°C ~ 70°C
Vibration / Shock	10G (20 ~ 200 Hz) XYZ / 70G 10 ms
Lens Mount	F-mount
Power	10 ~ 36 V DC
Power	Dissipation: Typ. 7.5 W
Compliance	CE, FCC, KC
API SDK	Vieworks Imaging Solution 7.X

VP-103MX2-M 24 I DATASHEET
