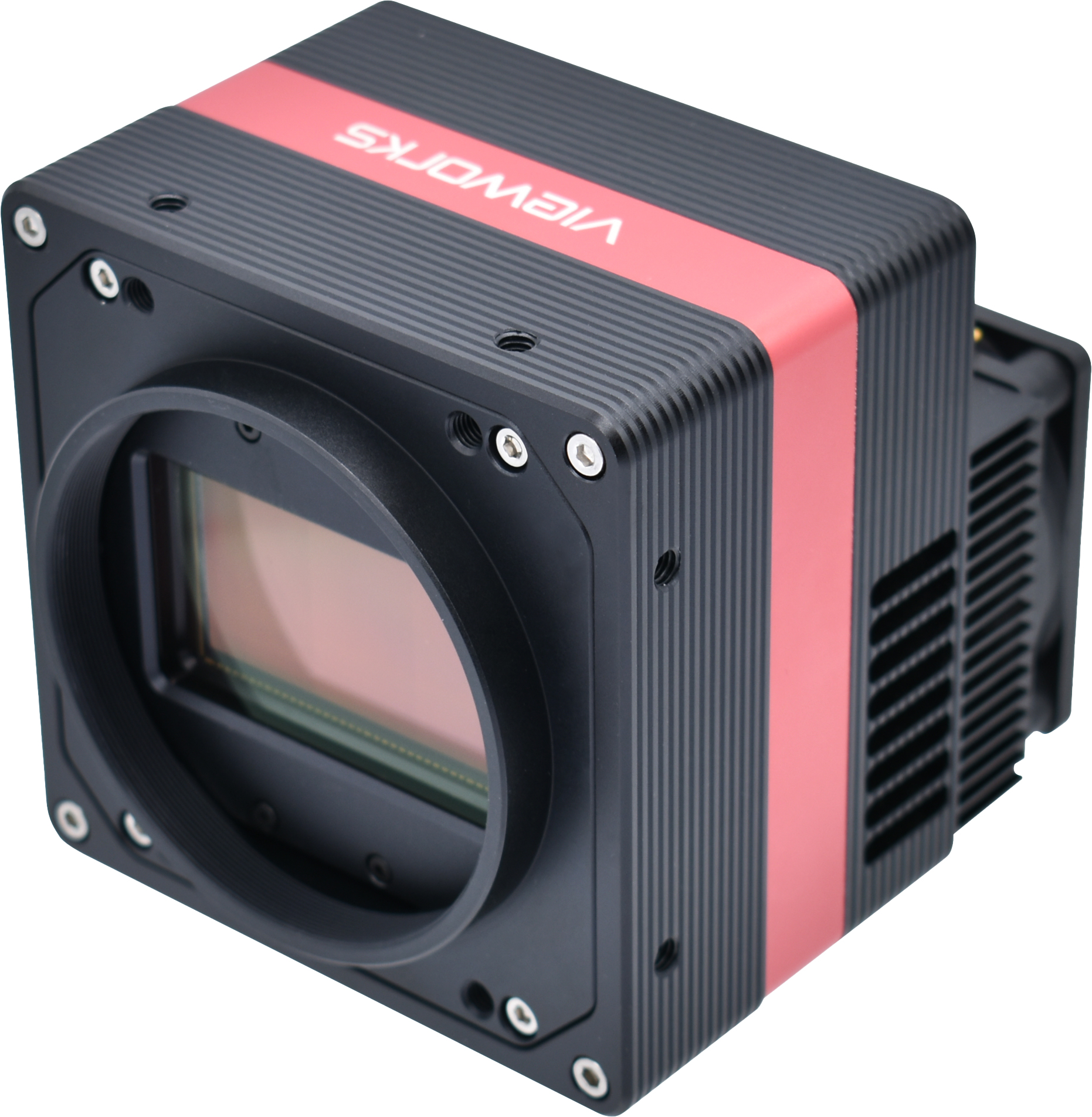

VP-152MX2-M 16

The VP-152MX2-M16, the latest model of the industrial proven VP series, is a new 152-megapixel CoaXPress camera and adopts the cutting-edge High Speed CMOS Image Sensor. The VP-152MX2-M16 camera offers up to 16.3 frames per second at 16544 × 9200 resolution. This camera uses thermoelectric Peltier (TEC) cooling technology developed for and used by many demanding medical mar-ket customers. The TEC maintains the operating temperature of the CMOS image sensor at up to 15 degrees below ambient temperature. This camera provides a stable operating condition and the ability to expose for a long period of time to increase camera sensitivity. Featuring the stable operating capability and high resolution, this camera is ideal for demanding applications such as FPD, PCB and semiconductor inspections.

RESOLUTION (MP)152

RESOLUTION (HxV)16544 x 9200

FPS16.3

Sensor TypeSyncron

InterfaceCXP-12

ChromaMono

Thermoelectric Peltier Cooled – 15℃ below
152 Megapixel Resolution
CoaXPress 2.0 Interface up to 16.3 fps at 50 Gbps using 4 CH
Global Shutter
Flat Field Correction
DSNU and PRNU Correction

Flat Panel Display Inspection
Semiconductor Inspection
Electronics Inspection
Document and Film Scanning

Model	VP-152MX2-M16
Resolution (H × V)	16,544 × 9,200
Sensor Size (Diagonal)	53.0 mm × 29.4 mm (60.6 mm)
Sensor Type	High Speed CMOS Image Sensor
Pixel Size	3.2 μm × 3.2 μm
Interface	CXP-12 × 4
Max. Frame Rate	CXP-6 × 4: 15.6 fps
	CXP-10 × 4: 16.3 fps
	CXP-12 × 4: 16.3 fps
Exposure Time (1 μs step)	1 μs ~ 60 s
Partial Scan (Max. Speed)	704 fps at 4 Lines
Pixel Data Format	Mono 8 / Mono 10 / Mono 12
Electronic Shutter	Global Shutter
Binning	×1, ×2, ×4 (Horizontal and Vertical Independent)
Gain Control	Analog: 1.4× ~ 2.8× (Step 0.1), 3.2× ~ 5.2× (Step 0.4)
Gain Control	Digital: 1× ~ 32×
Black Level Control	0 ~ 255 LSB at 12 bit
Trigger Synchronization	Free-Run, Hardware Trigger, Software Trigger or CXP
External Trigger	3.3 V ~ 24.0 V, 10 mA, Logical Level Input, Optically Isolated
Software Trigger	Asynchronous, Programmable via Camera API
Dynamic Range	66 dB
Cooling Method	Thermoelectric Peltier Cooling
Cooling Performance	15±2°C below ambient temperature – Standard cooling with a fan
Dimension / Weight	100.0 mm × 100.0 mm × 116.0 mm, 1,650 g (with M72-mount)
Temperature	Operating: 0°C ~ 40°C, Storage: -40°C ~ 70°C
Lens Mount	M72-mount, Custom mount available upon request
Power	External: 11 ~ 24 V DC
Power	Dissipation: Typ. 32.0 W
Compliance	CE, FCC, KC
API SDK	Vieworks Imaging Solution 7.X

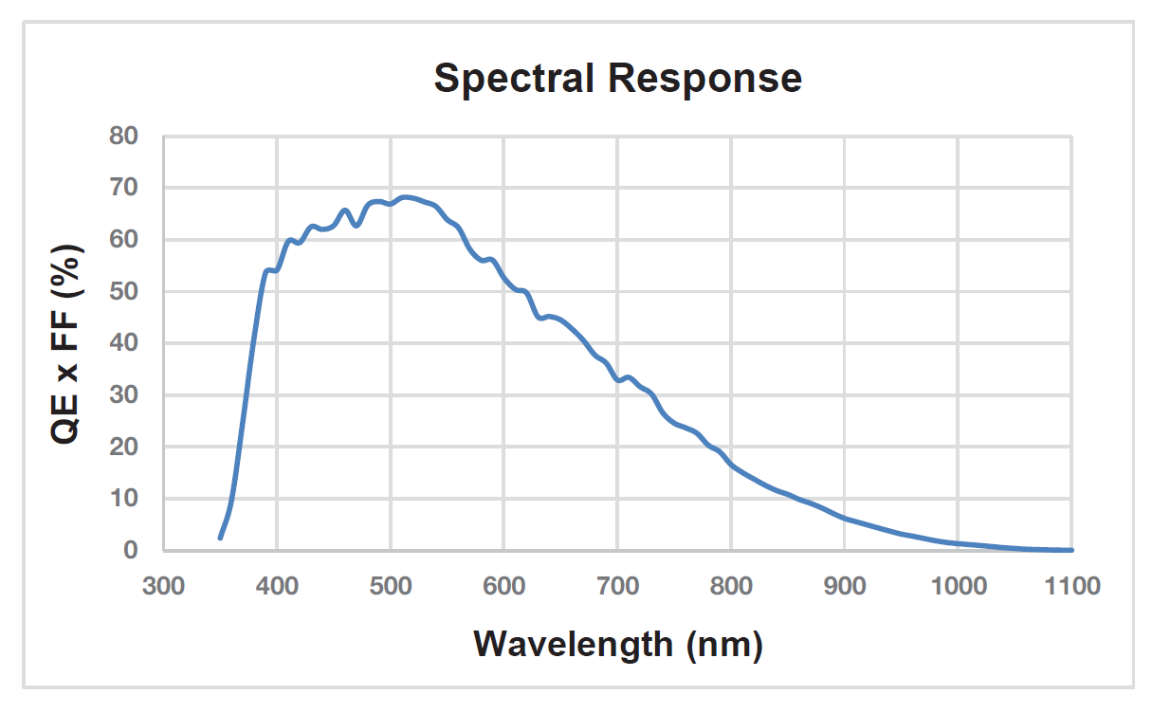

VP-152MX2-M 16 DATASHEET
