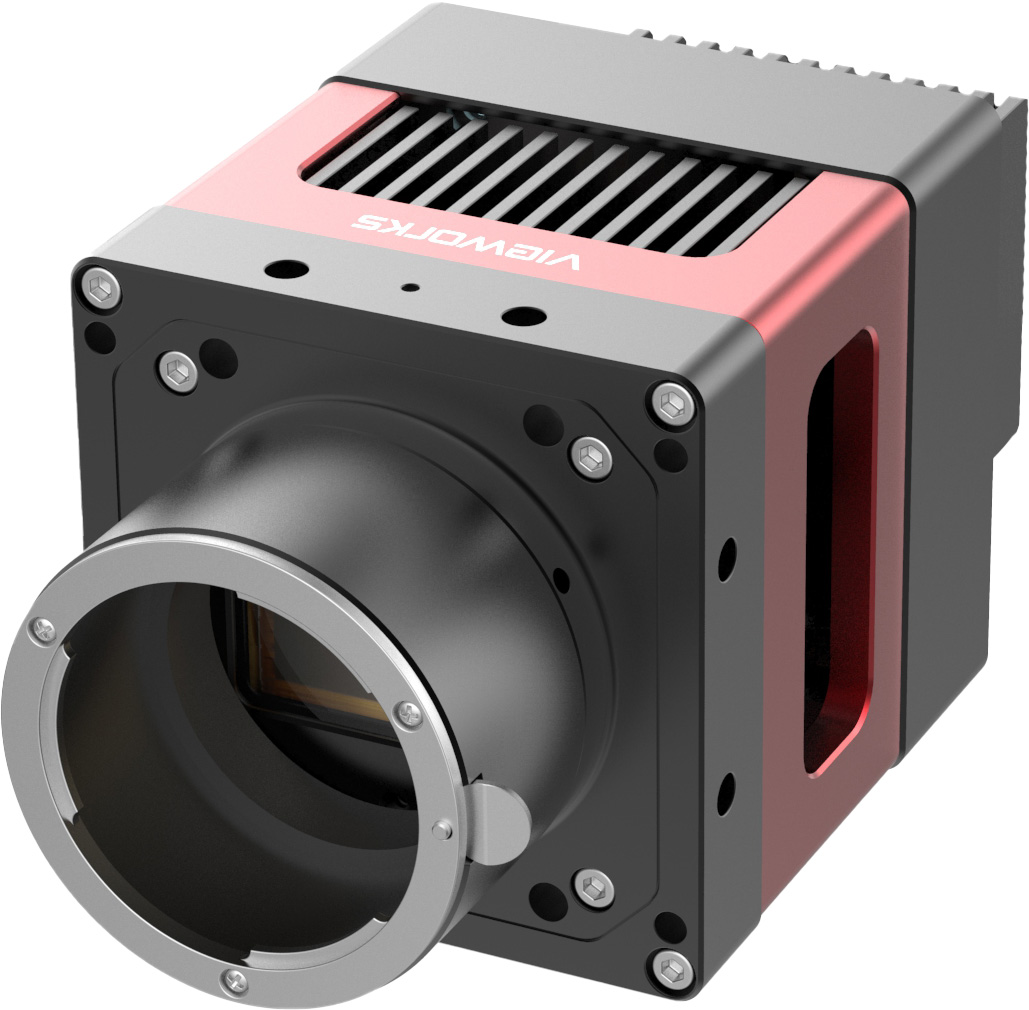

VP-61MX-M 18 H

The VP-61MX 18 H is a new 61 megapixel CMOS camera available with the CoaXPress interface. This camera is based on the latest CMOS image sensor technology (IMX455) from Sony Semiconductor Solutions Corporation. The VP-61MX 18 H offers up to 17.9 frames per seconds at 9568 × 6380 resolution. This camera uses thermoelectric Peltier (TEC) cooling technology developed for and used by many demanding medical market customers. The TEC maintains the operating temperature of the image sensor at up to 15 degrees below ambient temperature. The VP-61MX camera provides a stable operating condition and the ability to expose for a long period of time to increase the camera’s sensitivity. Featuring high-speed and high-resolution with stable performance, this camera is ideal for demanding applications such as FPD, PCB and semiconductor inspections.

RESOLUTION (MP)61

RESOLUTION (HxV)9568 x 6380

FPS17.93

Sensor TypeIMX455

InterfaceCXP-6

ChromaMono

Thermoelectric Peltier Cooled – 15℃ below
61 Megapixel Resolution
CoaxPress Interface up to 17.9 fps at 25 Gbps using 4 CH
Electronic Rolling Shutter
Flat Field Correction with Sequencer Control
DSNU and PRNU Correction
Hot Pixel Correction

Flat Panel Display Inspection
Electronics Inspection
Semiconductor Inspection
Document and Film Scanning

Model	VP-61MX-M/C 18H
Resolution (H × V)	9568 × 6380
Sensor	SONY IMX455
Max. Image Circle	Diagonal 43.3 mm (Type 2.7)
Pixel Size	3.76 μm × 3.76 μm
Interface	CoaXPress (CXP-3 / CXP-6)
Max. Frame Rate	8/10/12 bit: 17.93 fps
	14 bit: 9.99 fps
	16 bit: 3.98 fps
Exposure Time (2-Line step)	17.33 μs ~ 60 s
Partial Scan (Max. Speed)	2057.6 fps at 4 Lines
Binning	Sensor: ×1, ×2, ×3 (Horizontal and Vertical Dependent, 8/10/12 bit only)
Binning	Logic: ×1, ×2, ×4 (Horizontal and Vertical Independent)
Pixel Data Format	Mono: Mono 8/10/12/14/16
Pixel Data Format	Color: RG Bayer 8/10/12/14/16
Electronic Shutter	Rolling Shutter
Trigger Synchronization	Overlapped: Free-Run
	Non-overlapped
	Hardware Trigger, Software Trigger, CXP or User Output0
External Trigger	3.3 V ~ 24.0 V, 10 mA, Logical Level Input, Optically Isolated
Software Trigger	Asynchronous, Programmable via Camera API
Dynamic Range	78 dB
Gain Control	Analog: 1× ~ 32×
Gain Control	Digital: 1× ~ 32×
Black Level Control	0 ~ 1023 LSB at 16 bit
Cooling Method	Thermoelectric Peltier Cooling
Cooling Performance	15°C below Ambient Temperature – Standard Cooling with a Fan
Dimension / Weight	80.0 mm × 80.0 mm × 154.6 mm, 1070 g (with F-mount)
Temperature	Operating: 0°C ~ 40°C, Storage: -40°C ~ 70°C
Lens Mount	F-mount, Custom Mount Available upon Request
Power	External: 11 ~ 24 V DC
Power	Dissipation: Typ. 28.0 W
Compliance	CE, FCC, KC (in preparation)
API SDK	Vieworks Imaging Solution 7.X

VP-61MX-M 18 H DATASHEET
