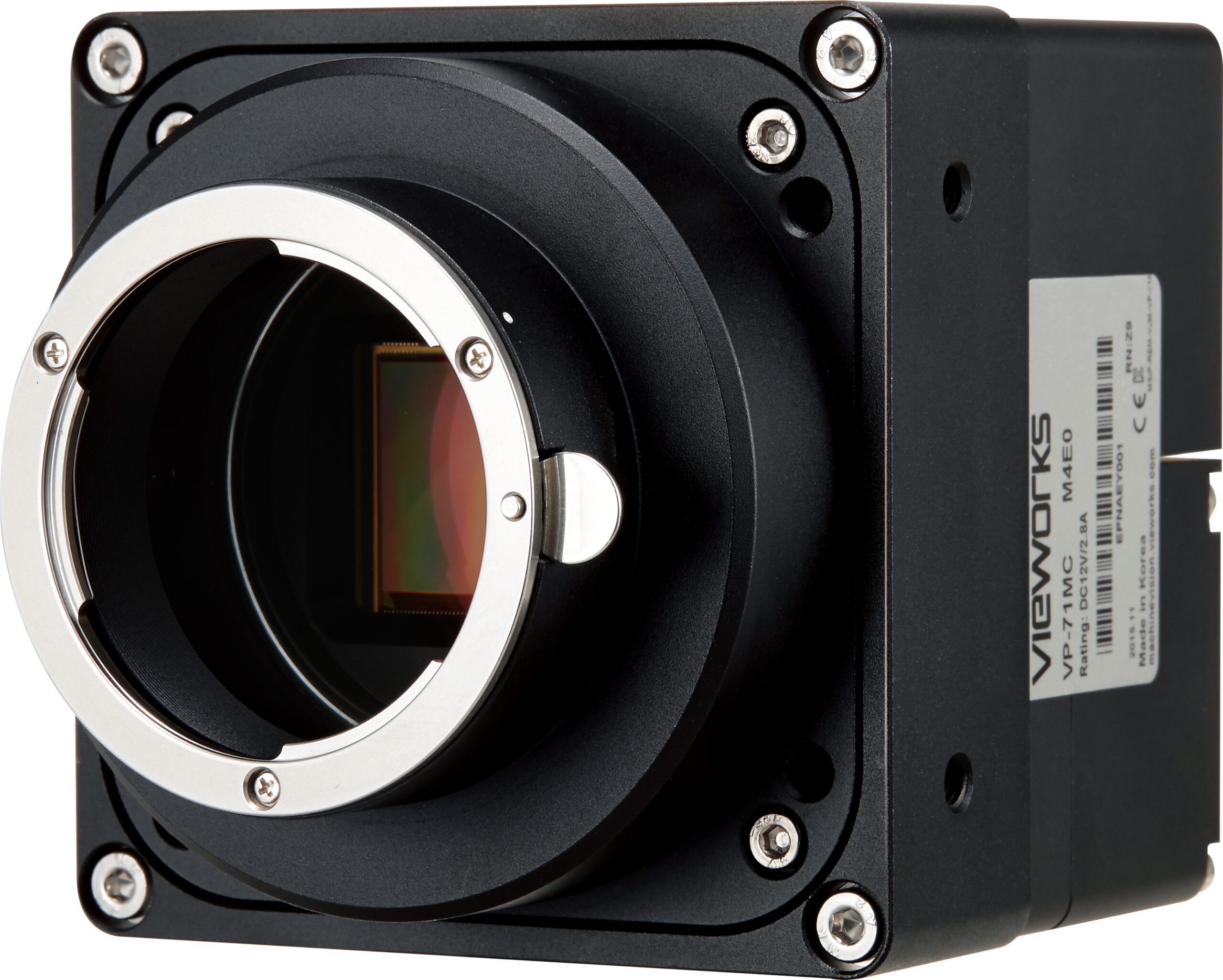

VP-71MC-M 4

The VP-71MC 4 is a new 71 megapixel CMOS camera available with the Camera Link interface. This camera is based on the latest CMOS image sensor technology (CHR71000) from CMOSIS. The VP-71MC 4 offers up to 4 frames per seconds at 10000 x 7096 resolution. This camera uses thermoelectric Peltier (TEC) cooling technology developed for and used by many demanding medical market customers. The TEC maintains the operating temperature of the image sensor at up to 20 degrees below ambient temperature. The VP-71MC camera provides a stable operating condition and the ability to expose for a long period of time to increase the camera’s sensitivity. Featuring high-speed and high-resolution with stable performance, this camera is ideal for demanding applications such as FPD, PCB and semiconductor inspections.

RESOLUTION (MP)71

RESOLUTION (HxV)10000 x 7096

FPS4.2

Sensor TypeCHR71000

InterfaceCamera Link

ChromaMono

Thermoelectric Peltier Cooled – 20℃ below
71 Megapixel Resolution
Camera Link Full Interface up to 4.2 fps
Electronic Rolling Shutter
Flat Field Correction
DSNU and PRNU Correction
Pixel Defect Correction

Flat Panel Display Inspection
Semiconductor Inspection
Research and Scientific Imaging
Document and Film Scanning

Model	VP-71MC-M/C 4
Resolution (H x V)	10000 x 7096
Sensor	CMOSIS CHR70M
Sensor Size (Optical Format)	31.00 mm x 24.11 mm (38 mm)
Sensor Type	High Resolution CMOS Imaging Sensor
Pixel Size	3.1 μm x 3.1 μm
Interface	2 Tap: Camera Link Base
	4 Tap – Normal: Camera Link Medium
	4 Tap – High: Camera Link Medium
Max. Frame Rate	2.1 fps (CL Base)
	2.9 fps (CL Medium)
	4.2 fps (CL Medium / Overclocked)
Transfer Time	476 ms (CL Base)
	335 ms (CL Medium)
	238 ms (CL Medium / Overclocked)
Exposure Time	66 μs ~ 7 s (1 line step)
Pixel Data Format	8 / 10 / 12 bit
Electronic Shutter	Rolling Shutter
Data Output Pixel Clock Speed	2 Tap: Normal: 85 MHz
Data Output Pixel Clock Speed	4 Tap: Normal: 60 MHz / High: 85 MHz
Trigger Mode	Free-Run, External Trigger Programmable Exposure Time and Trigger Polarity
Dynamic Range	63 dB
Cooling Method	Thermoelectric Peltier Cooling
Cooling Performance	About 20 below ambient temperature – Standard Cooling with a Fan
Dimension / Weight	90 mm x 90 mm x 137 mm, 1500 g (F-mount)
Temperature	Operating: 0°C ~ 40°C, Storage: -40°C ~ 70°C
Lens Mount	F-mount, Custom mount available upon request
Power	10 ~ 24 V DC, Typ. 20.0 W
Compliance	CE, FCC, KC
Configuration Software	Configurator

VP-71MC-M 4 DATASHEET
