VC-21MHF-C 580 I

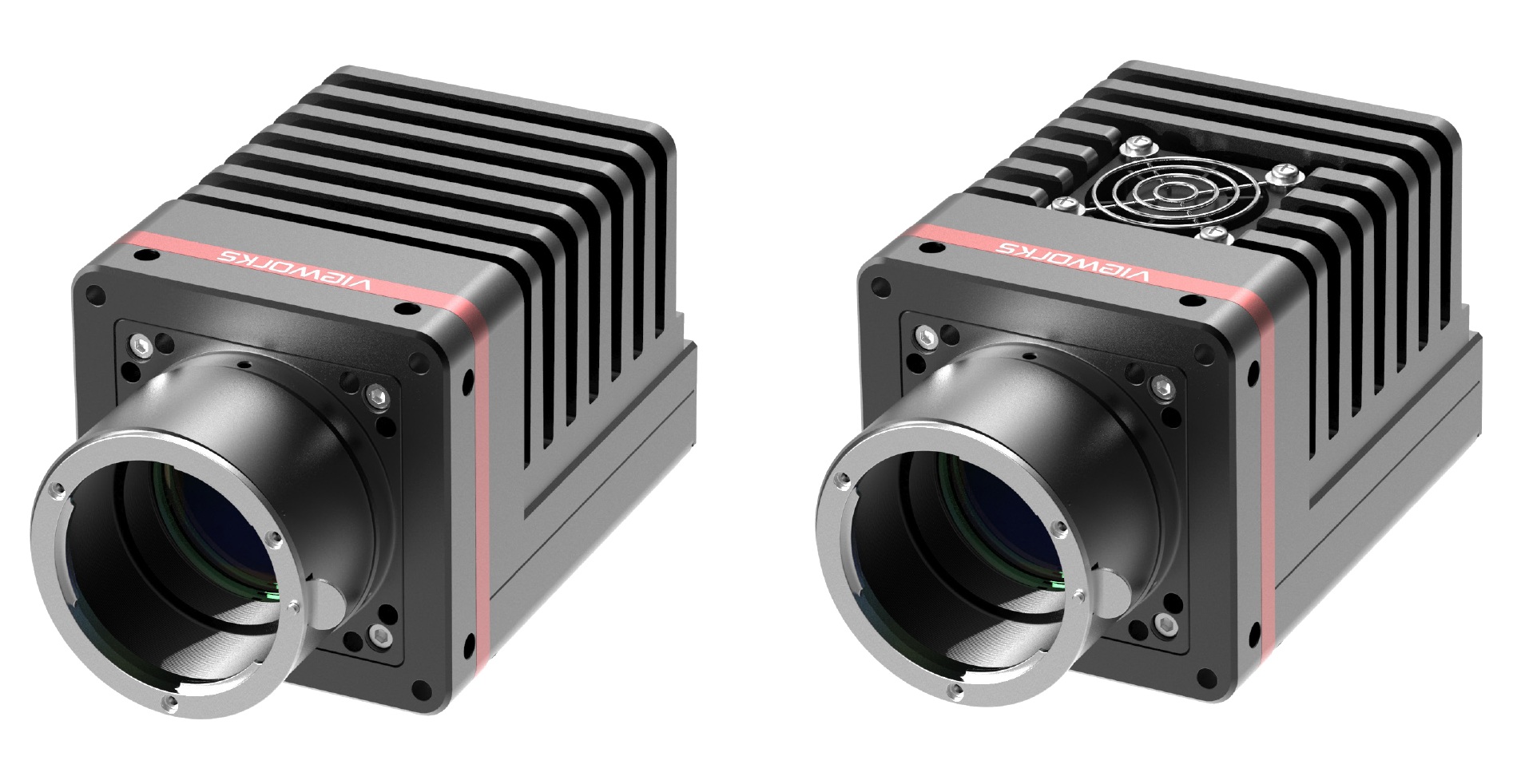

The VC-21MHF-M/C580I camera is Vieworks’ first camera with the CoF(CoaXPress over Fiber) interface that offers 580 frames per second at 5120 × 4096 resolution. This new interface supports transmitting image data at up to 100 Gbps. Equipped with the Vieworks’ innovative technologies, this camera delivers not only very fast frame rates but also big availability to extend lengths for cables.Featured with high speed and high performance, the VC-21MHF-M/C580I camera is an excellent choice for applications that require high speed and resolutions, such as FPD, PCB and semiconductor inspections.For wide range of choice, Vieworks provides this amazing product in two different types, the fan type and the heat sink type, with the same specification.

RESOLUTION (MP)21

RESOLUTION (HxV)5,120 × 4,096

FPS580

Sensor TypeGpixel GSPRINT 4521

InterfaceCoaXPress over Fiber

ChromaColor

High Speed 21 Megapixel CMOS Image Sensor
CoaXPress over Fiber Interface up to 100 Gbps using 1 Link
Global Shutter CMOS Technology
DSNU and PRNU Correction
Flat Field Correction
Defective Pixel Correction
GenICam Compatible – XML based Control

FPD and Electronics Inspection
Semiconductor Inspection
Research and Scientific Imaging
Document / Film Scanning

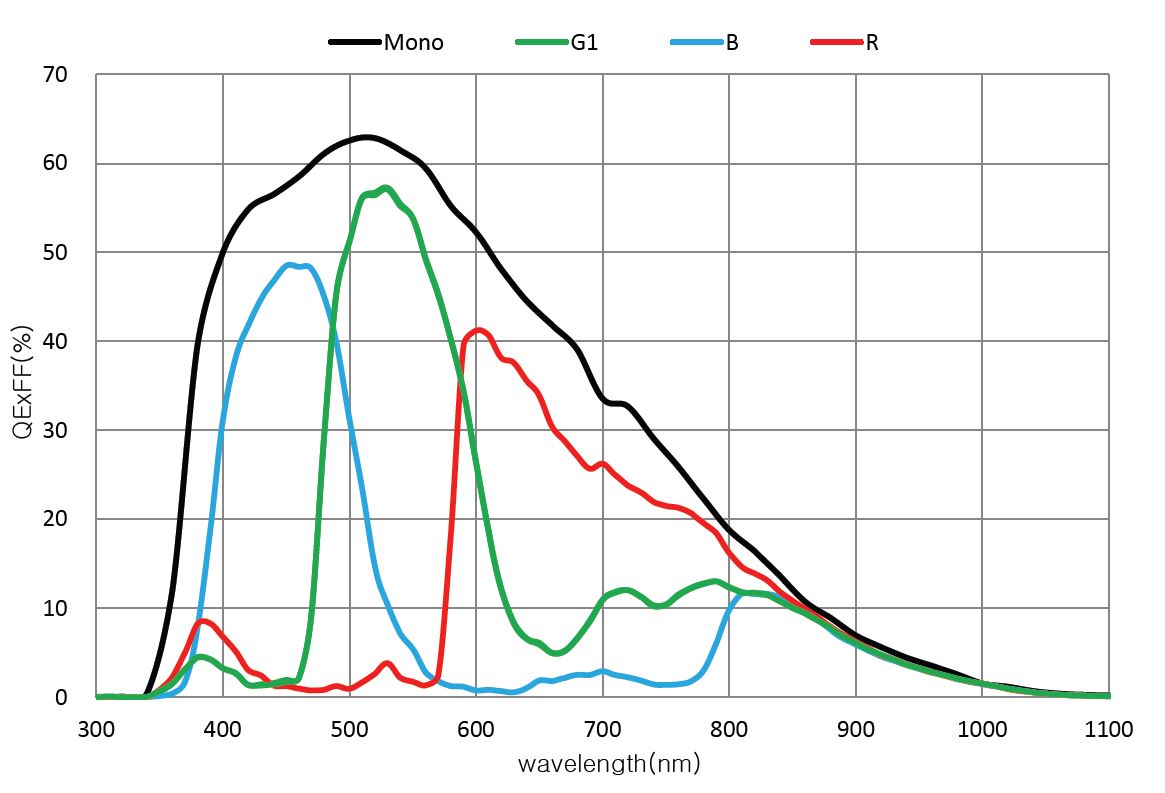

Model	VC–21MHF–M/C580I
Resolution (H × V)	5,120 × 4,096
Sensor	Gpixel GSPRINT 4521
Optical Format (Diagonal)	23.04 mm × 18.43 mm (29.5 mm)
Sensor Type	High Speed CMOS Image Sensor
Pixel Size	4.5 μm × 4.5 μm
Interface	CoaXPress over Fiber
Optical Transceiver	100G QSFP28 SR4
Max. Frame Rate (8 bit)	580 fps
Exposure Time	4 μs to 10 s
Partial Scan (Max. Speed)	18370 fps at 32 Lines
Pixel Data Format	Mono: Mono 8/10 bit Color: GB Bayer 8/10 bit
Electronic Shutter	Global Shutter
Gain Control	Analog: 1.0×, 1.3×, 2.0×, and 4.2× Digital: 1× to 32×
Black Level Control	0 to 64 LSB at 10 bit
Trigger Synchronization	Free–Run, Hardware Trigger, Software Trigger or CXP
External Trigger	3.3 V to 24.0 V, 10 mA, Logical Level Input, Optically Isolated
Software Trigger	Asynchronous, Programmable via Camera API
Dynamic Range	Typ. 62.14 dB at 10 bit
Dimension / Weight	tbd
Temperature	Operating: 0°C to 40°C, Storage: –40°C to 70°C
Lens Mount	F–mount, Custom mount available upon request
Power (External)	11 to 24 VDC
Power (Dissipation)	Typ. 26 W
Compliance	CE, FCC, and KC

VC-21MHF-C 580 I - DATASHEET
