VNP-200MX-M 30

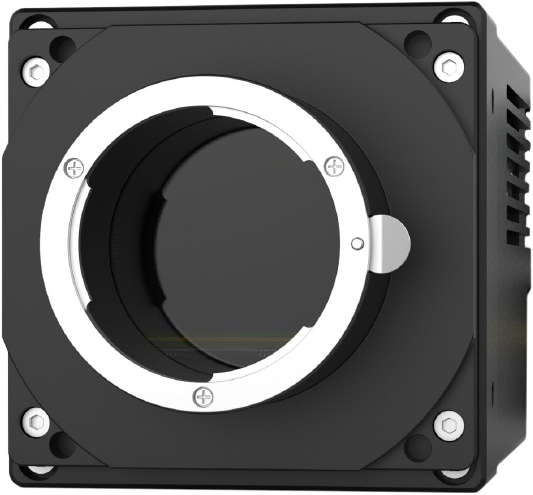

The VNP-200MX, a pixel shifting camera equipped with thermo-electric Peltier (TEC) cooling. Designed not only for applications where extremely high resolution is required but also where high quality image is essential. The TEC maintains the operating temperature of the image sensor at up to 10 degrees below ambient temperature to reduce noise significantly. Pixel shifting technology based on a precise piezoelectric stage allows image captures as high as 427 million pixels using the VNP-200MX camera. Its CoaXPress interface supports transmitting image data at up to 25 Gbps using four coaxial cables. This camera is ideal for applications such as FPD inspection, document / film scanning, research and scientific imaging.

RESOLUTION (MP)427

RESOLUTION (HxV)23760 x 18012

FPS30

Sensor TypeCMV50000

InterfaceCXP-6

ChromaMono

50 Megapixel Resolution
Nano Stage Pixel Shifting Mechanism
Extended Resolution up to 427 MP at 3 fps (9 Shot Mode)
Thermoelectric Peltier Cooling
CoaXPress Interface up to 30 fps at 25 Gbps using 4 CH
Pixel Defect Correction
Flat Field Correction
DSNU and PRNU Correction

Flat Panel Display Inspection
PCB Inspection
Semiconductor Inspection
High Speed 3D Imaging
Document / Film Scanning
Research and Scientific Imaging

Resolution (MP)			50
Resolution (H x V)			7920 x 6004
Sensor			AMS CMOSIS CMV 50000
Sensor Size (Diagonal)			36.43 mm x 27.62 mm (45.72 mm)
Optical Format			35 mm
Sensor Type			High Speed CMOS Image Sensor
Pixel Size			4.6 µm x 4.6 µm
Interface			CoaXPress
Max Frame Rate		47.5 MP	1 CH: 7.7 fps	1 CH: 15.5 fps		4 CH: 30.9 fps
		190 MP	1 CH: 2 fps	1 CH: 3.9 fps		4 CH: 7.7 fps
		427 MP	1 CH: 1 fps	1 CH: 1.7 fps		4 CH: 3.4 fps
Exposure Time (1 µs step)			1 µs – 60 s
Partial Scan (Max Speed)			3968 fps at 4 Lines
Pixel Data Format		Mono	Mono 8 / Mono 10 / Mono 12
		Color	BG Bayer 8 / BG Bayer 10 / BG Bayer 12
Electronic Shutter			Global
Gain Control			1x – 30x (1/1024 Step)
Black Level Control			0-256 LSB at 12 bit (1 LSB Step)
Exposure Mode			Free Run, Timed, Trigger Width

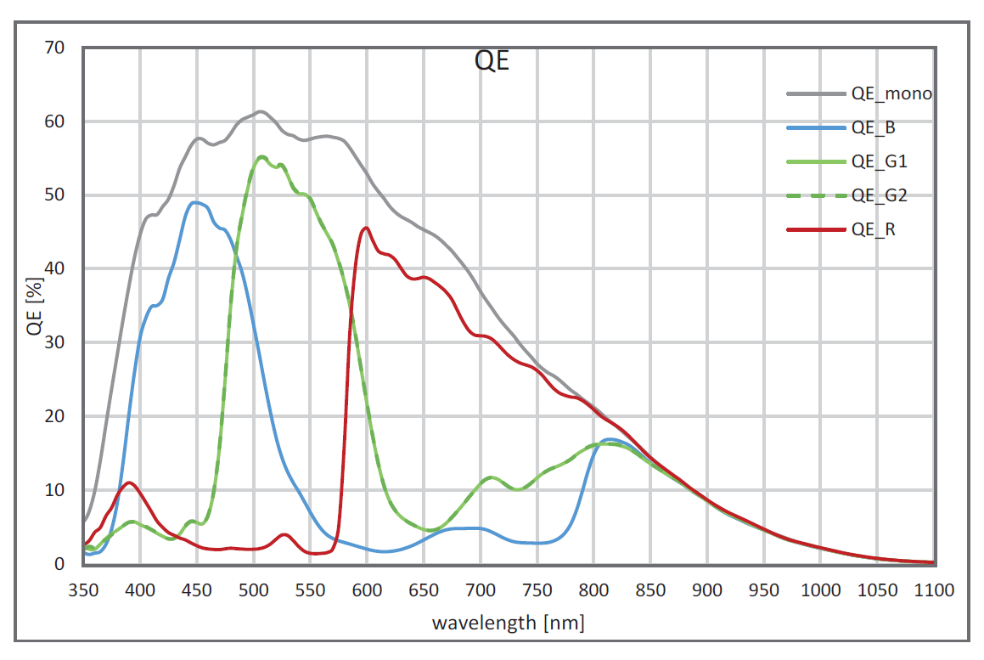

Dynamic Range			64 dB
Shift Range			0-75 µm, 1 nm Step
Shift Resolution			0.001 µm
Shift Control			Sequence Mode (Mono4, Mono9, Mono2H, Mono 2V, Bayer 4, Bayer 16)
Dimension			90.0 mm x 90.0 mm x 191 mm
Weight			1920 g
Temperature			Operating: -5° C – 40° C		Storage: -40° C – 70° C
Lens Mount			F Mount
Power	Adapter		10 – 24 V DC, Typ 26 W
	PoCXP		Not Supported
Compliance			CE, FCC, KC

VNP-200MX-M 30 - DATASHEET
